Price: $478.00

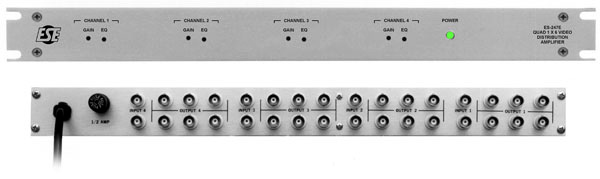

The ES-247E provides four independent 1x6 Video DA's in a single rack-mount enclosure. Each DA has loop-thru inputs and six isolated outputs, all accessible via BNC connectors. Screwdriver-adjustable Gain and Equalization controls are provided on the front of the case. Up to 1000 feet of cable may be compensated by adjusting the EQ trimmer. The Gain control provides an overall signal level adjustment of - 2 to +3 db. When the input is not looped thru to other equipment, a 75 ohm terminator should be used on the free input connector. Unused outputs need not be terminated. Features: Four Independent Amplifier Channels BNC connectors Loop-thru video input 6 isolated outputs per channel (75 ohm) 10 MHz frequency response Gain & HF Equalization controls Single-rack Height Enclosure 220-240 VAC (110-120 VAC is standard) & UL options available Various Options available: Black, J, P(1), UL, W(1) Options: (Black) Black Anodized Front Panel-option available when standard panel is clear anodized List: $15.00 © Crystal Time Base (2-3 seconds week accuracy) List: $60.00 (D) Remote Control via 6 ft Cable, Connector, Switch Plate List: (extra cable at $2.00/ft) $65.00 (DC) 12 - 35 VDC Operation (No AC Power Input is supplied with Option "DC") List: $250.00 (ESE) ESE Serial Time Code Output List: $30.00 (EQ) Front panel accessible Equalization trimmer when cable is to exceed 100' (400' max.) List: 25.00 (J) 220 Volt / 50 Hz Operation (Standard is 117 Volt / 60 Hz) List: (+ option "UL" = $125.00) $30.00 (L2) 2 Additional Video Loop Thru's List: $150.00 (L4) 4 Additional Video Loop Thru's List: $300.00 (MT) Precision Multi-turn Potentiometers for Gain Control (Standard with ES-246/XLR) see above (P) 19" Rack Mount List: $55.00 (P2) 19" Rack Mount mounts two (2) units (with P2 Option) side-by-side (Consult ESE factory) List: $75.00 ® Rear-mounted connector for Remote Control (standard on many units) List: $55.00 (SV) S-VHS connectors are provided instead of standard BNC connectors List: $75.00 (Sync) Composite Sync Output; 2 vpp into 75. List: $30.00 (Tone) Continuous 1KHz Tone at 0db for Synching Audio with Video List: $55.00 (UL) "UL" Approved Wall Mount Power Supply List: (+ option "J" = $125.00) $60.00 (W) 3 Wire Line Cord List: $16.00 (XLR) XLR Connectors instead of standard Terminal Block see above NOTES: 1) Included at no charge 2) Includes Windows control software 3) With option 'SV' only one of the following options may be specified 'L2', 'L4', or 'P2'
Direct Ship From Manufacturer - Special Order Item: non-cancelable, non-returnable, non-refundable. 3 - 7 Business Day Delivery Time
