BrightEye 43 is a reclocking distribution amplifier that can be used with standard definition video signals, 3 Gb/s and 1.5 Gb/s high definition signals, or ASI signals. The signal is equalized, reclocked and delivered to six simultaneous outputs. The reclocker is ASI compliant and all six outputs have the correct ASI polarity.

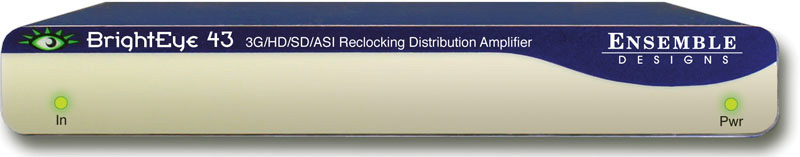

This is a simple device with no USB port and no interface to BrightEye Mac or PC software. Front panel indicators show the presence of an input signal and power.

• Use with Video Converters and TSGs in Order to Have More Outputs
• DA for Digital HD or SD Signals
• DA for 3G HD, Level A or Level B
• DA for ASI Signals
• Passes Embedded Audio

Serial Digital

• Number: One
• Signal Type 270 Mb/s SD Serial Digital
  (SMPTE 259M)
  1.485 Gb/s HD Serial Digital
  (SMPTE 274M, 292M or 296M)
  3 Gb/s HD Serial Digital
  (SMPTE 424M, 425M)
• Impedance 75 U
• Return Loss >15 dB for 270 Mb/s
  >15 dB for 1.485 Gb/s
  >10 dB for 3 Gb/s
• Max Cable Length 300 meters for 270 Mb/s
  100 meters for 1.485 Gb/s
  120 meters for 3 Gb/s
  (Belden 1694A or equiv.)

Serial Digital Output

• Number: Six
• Signal Type 3G/HD/SD/ASI Serial Digital
  follows input
• Impedance 75 Ohm
• Return Loss >15 dB for 270 Mb/s
  >15 dB for 1.485 Gb/s
  >10 dB for 3 Gb/s
• Output DC None (AC coupled)

General Specifications

• Size 5.625" W x 0.8" H x 5.5" D
  (143 mm x 20 mm x 140 mm)
  including connectors
• Power 12 volts, 7 watts
  (100-230 VAC modular power supply not included)
• Temperature Range 0 to 40ø C ambient
• Relative Humidity 0 to 95ø non-condensing
