Gefen EXT-DVI-FMP DVI FM Extender PLUS EXT-DVI-FMP

The DVI FM Extender Plus from Gefen is distribution system designed to transport DVI signals over extended distances using fiber-optic cable. This solution can be used to transport signals up to 2000'.

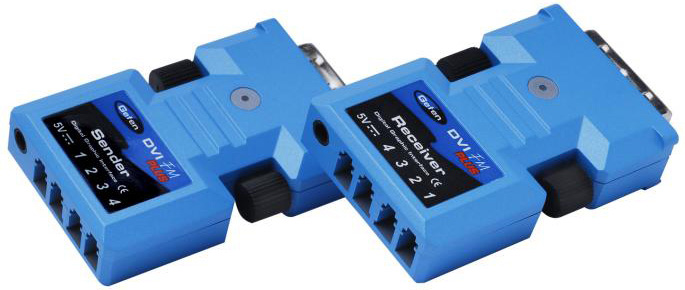

It consists of a transmitter that plugs into your computer and a receiver that connects to your display. The transmitter sends DVI signals over multi-mode fiber-optic LC cable to the receiver, which in turn translates the signal back into DVI format.

This unit supports resolutions up to 1080p, 2k, and 1920 x 1200. Also supported is DDWG standard for DVI-compliant monitors. It also features EDID programming to enable quick and correct sync of source to display.

DVI over Fiber-Optic Cable Use this device to extend DVI signals by transmitting over fiber-optic cable.
Transmission Distance This unit supports cable runs of up to 2000'.
Standards It supports DDWG standards for DVI monitors & EDID programming.
Resolution Resolutions up to 1080p, 2k, and 1920 x 1200 are supported.

Features:

• DVI over Fiber-Optic Cable
• Supports Cable Runs Up to 2000'
• Resolutions Up to 1080p, 2k, 1920 x 1200
• DDWG Standards
• EDID Programming

Specifications:

• Input
• Transmitter:
• (1) dual-link DVI 19-pin female
• (4) fiber-optic LC
• Output
• Receiver:
• (1) dual-link DVI 19-pin female
• (4) fiber-optic LC
• Resolution Up to 1080p, 2k, 1920 x 1200
• Input Signal Input Video Signal: 1.2Vp-p, Input DDC Signal: 5Vp-p (TTL).
• Bandwidth 165MHz
• Power 5VDC, 2.5W maximum (each power supply)
• Dimensions (HxWxD) 0.5 x 2.2 x 1.5"
• Weight 1 lbs

Item Includes:

• Gefen DVI FM Extender Plus
• DVI FM Plus Transmitter
• DVI FM Plus Receiver
• 2 x 5VDC Power Supplies
• User's Manual
• Two-Year Warranty Against Defects in Material & Workmanship
