Price: $144.00

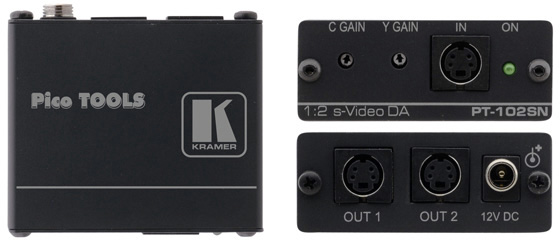

Kramer PT-102SN Pico Tool 1x2 S-Video Distribution Amplifier The PT-102SN is a high-performance video distribution amplifier for s-Video (Y/C) video signals. The unit takes one input, provides correct buffering and isolation, and distributes the signal to two identical outputs. Bandwidth (Y) - 150MHz (-3dB). Y & C Level (Gain) Controls. Ultra Compact PicoTOOLS™ - 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-4PT rack adapter. Specifications INPUTS: 1 s-Video on a 4-pin connector. OUTPUTS: 2 s-Video on 4-pin connectors. MAX. OUTPUT LEVEL: 1.3Vpp. BANDWIDTH (-3dB): 150MHz. DIFF. GAIN: 0.05%. DIFF. PHASE: 0.05Deg. K-FACTOR: <0.05%. S/N RATIO: 76dB @5MHz. CONTROLS: Gain: luma: -1.9dB to +5.1dB chroma: 0dB to +6.8dB, @5MHz. COUPLING: AC. POWER SOURCE: 12V DC, 25mA. DIMENSIONS: 6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96") W, D, H. WEIGHT: 0.14kg (0.31lbs) approx. ACCESSORIES: Power supply, mounting bracket. OPTIONS: 19" rack adapters. Equivalent to Comprehensive CDA-SV20
