My Custom Shop WPBA-2108-NB 2-Gang Black Anodized Wall Plate with 4 Neutrik 12G-SDI Recessed BNC Barrels WPBA-2108-NB

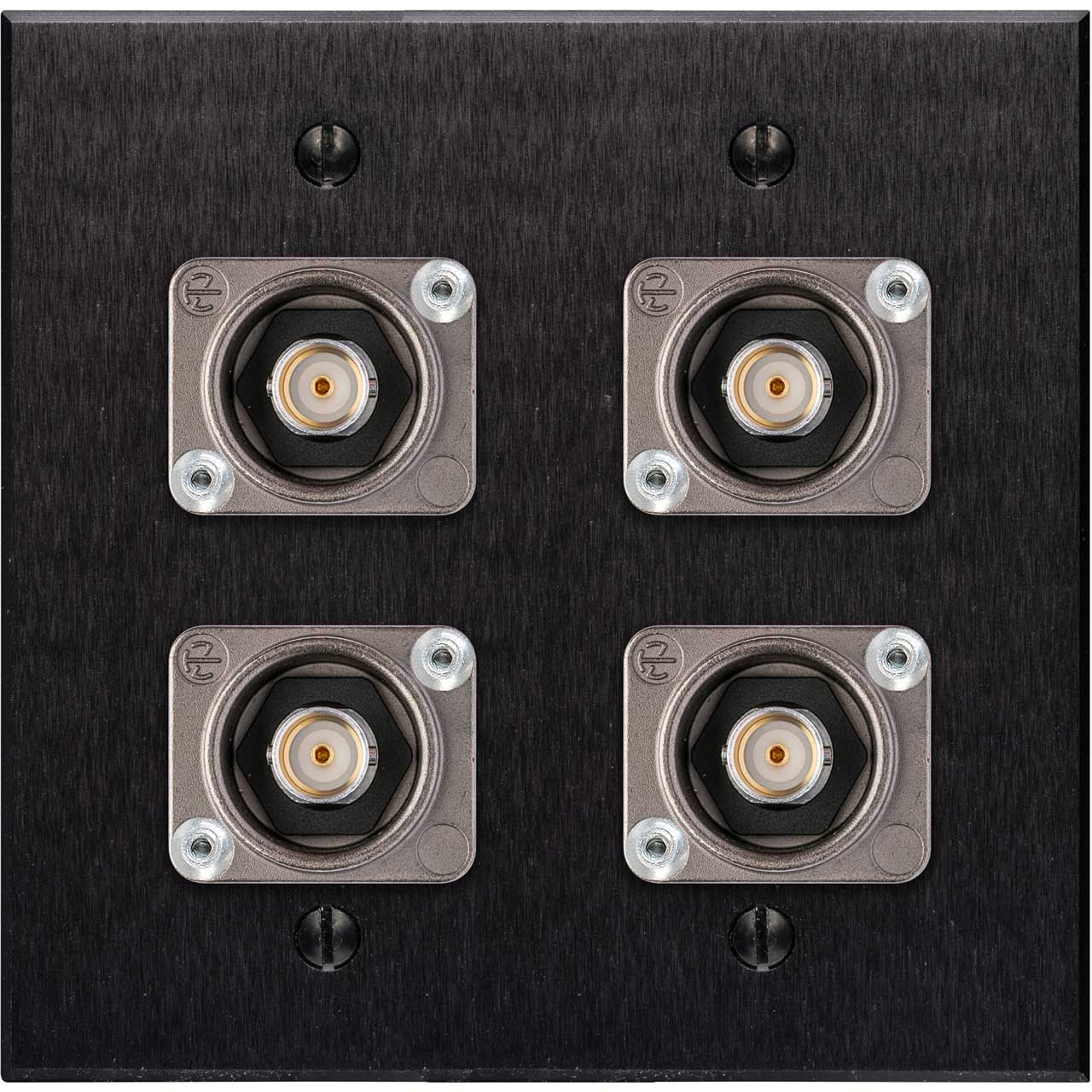

When performance and quality matter, nothing compares to a hand crafted wall plate from My Custom Shop. The WPBA-2108-NB 2-Gang Black Anodized wall plate features Four (4) 75 Ohm 12G BNC feed through barrel connectors so there's no soldering necessary and it's ready to pass your UHD signals.

The My Custom Shop. The WPBA-2108-NB is centered around Neutrik NBB75DFIX connectors. Each is an isolated UHD BNC offering low return loss values at high frequencies specifically designed to meet high resolution video standards. They deliver long term use and are recessed to offer additional protection.

Features:

• Handy Wall Plates Designed for 4K UHD, 12G-SDI Equipment Patching
• Protective Recessed Design
• Low Return Loss Neutrik 75 Ohm BNC Connectors
• Beryllium Copper Center Contact for Superior Spring Characteristics
• SMPTE ST 2082-1, ST 2081-1, ST424, ST292 Compliant

Specifications:

• 2-Gang Black Anodized Wall Plate
• Neutrik NBB75DFIX 75 Ohm BNC Connectors
• Return loss: ?1.06/&g;30dB up to 6 GHz, ?1.13 / &g;24dB up to 12 GHz
• Insulation Resistance: &g; 5G?

Warranty:

• 1 Year
