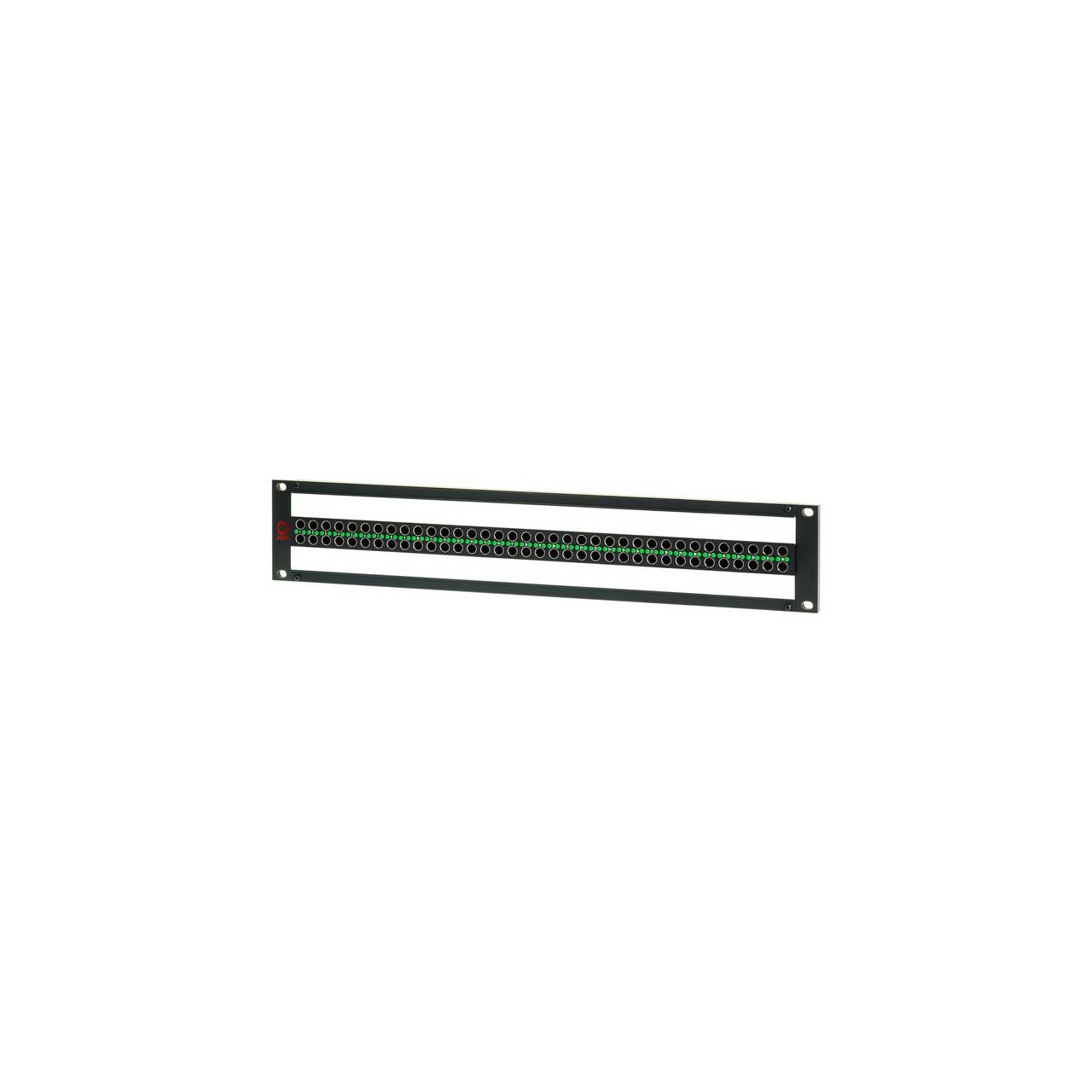

AVP AV-D236E2-AM-BZ 2 RU Midsize (Mini-WECO) Video Patch Panel - 2 x 36 - Non-Normaled - Non-Terminating

AVP's Midsize (Mini-WECO) patchbays are available in 32 and 36 jacks per row in 1RU, 1.5RU or 2 RU panels. Numbering, color-coding and front mount jacks offer maximum layout flexibility. All are designed for exceptional performance in high-bandwidth applications such as 3-D, HDTV, SDI, AES and high-resolution computer graphics, as well as in conventional analog applications such as monitor routing, primary routing, re-routing, router backup and video distribution.

Features:

• SuperHD+ 3.0GHz - 3Gb/s Midsize jacks
• Jacks meet SMPTE 424M-2006 HDTV specifications
• Life Cycle rating of 30,000
• Made & assembled in Canada/USA
• Front-mount jacks simplify system re-design & maintenance
• Numbered jack positions for quick and accurate installation, system troubleshooting & operational ease
• Patented designation design maximizes viewable area
• CIS (Circuit Identification System), allows color-coding of every circuit
• Also suitable for L Band

Specifications:

• Electrical:
• Rated Bandwidth: 3.0GHz - 3Gb/s: meets HDTV SMPTE 424M-2006 Specification
• Characteristic Impedance: 75 Ohms
• Contact Resistance: Less than 50 milliohms
• Termination Resistance: 75 Ohms +/- 1%
• Center Conductor: Accepts 0.048” pin diameter

  Environmental:
• Operating Temperature: -40°C to 65°C
• Storage Temperature: -40°C to 65°C
• Thermal Shock: Per MIL-STD-202, Method 107
• Moisture and Humidity: Per MIL-STD-202, Method 106
• RoHS: Compliant

  Mechanical:
• Mechanical Shock: Per MIL-STD-202, Method 213, Test condition 1
• Vibration: Per MIL-STD-202, Method 201
• Insertion Force: 7 lbs. maximum
• Withdrawal Force: 3 lb. minimum
• Life Cycle: 30,000 minimum

  Material:
• Housing Zinc: alloy, nickel plated
• Center Contacts: Copper alloy, gold plated
• Switching Contacts: Copper alloy, gold plated
• Grounding Contacts: Copper alloy, gold plated
• Actuators: Thermoplastic, UL 94V-0 rated
• BNC Insulators: Teflon

Item Includes:

• 1x 2 RU Panel - 36 AVP-AM Non-Normaled - Non-Terminating Jacks

Warranty:

• Lifetime Warranty on Jacks
• 5 Year Warranty on Panel
