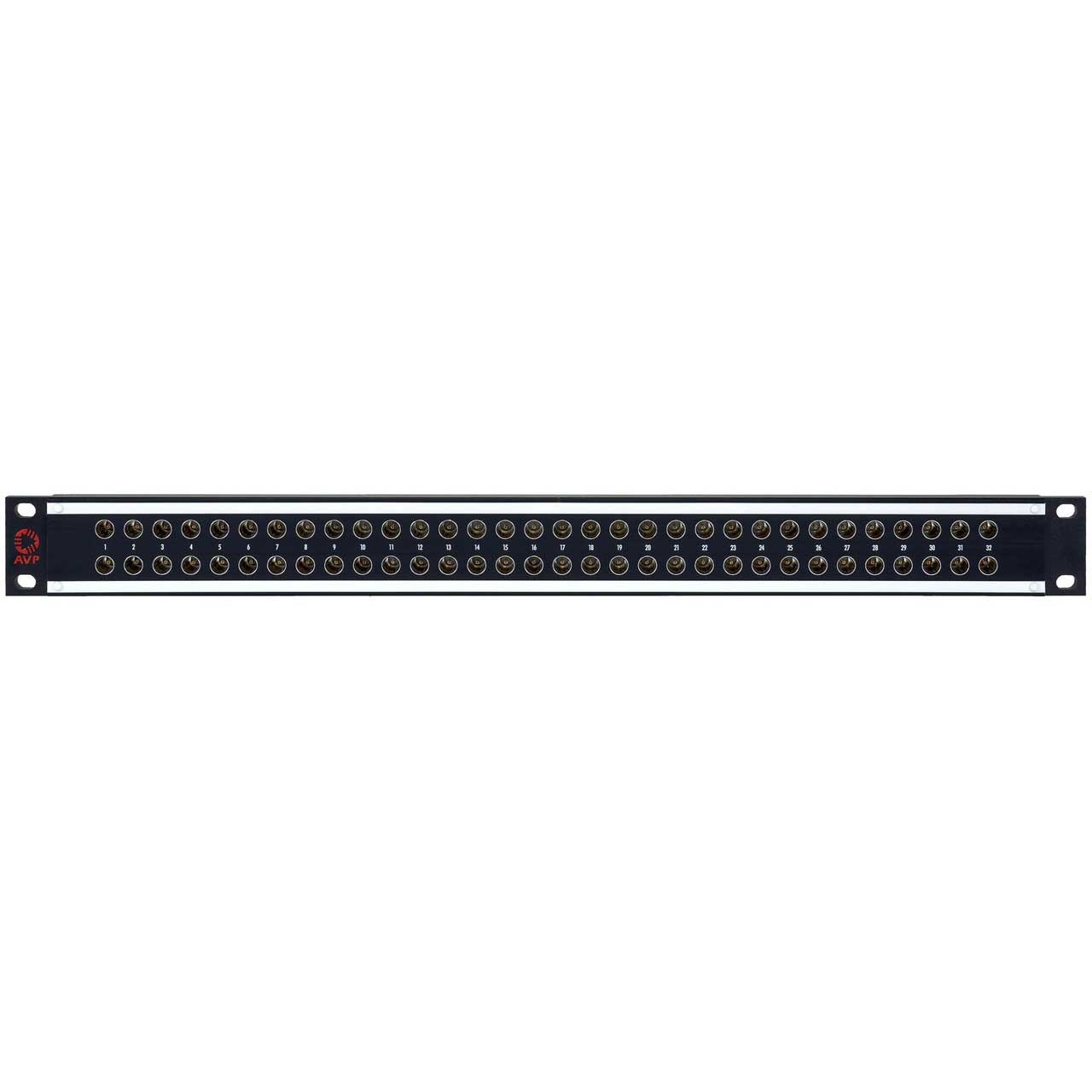

AVP AV-G232E1-AE8K-BZ 1RU Panel - 32 AE8KL Dual Jacks - Non-Normalled - Non-Terminating UHD Super 8K+ E Series AV-G232E1-AE8KBZ

AVP AV-G232E1-AE8K-BZ is part of the AVP 24GHz-12Gb/s UHD Super 8K+ E Series Video Jackfields and features a 1RU design with 2x32 Front mount video jacks, 64 AE8K 24GHz UHD 4K/8K 12Gb/s, non-normaled, non-terminating jacks and no cable bar!

Features:

• 24GHz, high bandwidth performance for SD-SDI, HD-SDI, UHD-SDI, HDR, 4K & 8K video applications
• Compliant with SMPTE 292M, 424M, ST2081-1
• Meets and exceeds SMPTE ST2082-1:2015 (Society of Motion Picture and Television Engineers® 12 Gb/s Signal/Data Serial Interface - Electrical)

Specifications:

• Contact Resistance: Inner Conductor =5m? Outer Conductor ?3m?
• Insulation Resistance: ?10G?
• Voltage: 1KVef/60Hz
• Impedance (BNC): 75?
• Return Loss: >20dB/3GHz+ >0.3dB/3GHz
• Mating Cycles: ?2500
• Force to Engage: Looping Plug 15 N Straight Plug 10 N
• Thermal & Climatic Characteristics: *(DIN IEC 68-1 40/155/21)
  Storage & Operating Temperature: -40° to 149°F (-40° to 65°C)
  Moisture resistance according to MIL Spec. 202
