Belden AX103255 2RU 48-Port CAT6+ KeyConnect Patch Panel - Black BL-AX103255

Belden AX103255 is a 2RU 48 Port CAT6+ KeyConnect Patch Panel in Black. Suitable for IBDN System 4800, 3600, 2400, TIA Category 6, ISO Class E, and 1000BASE-T applications.

Specifications:

• Related Parts: CAT6+ Modular Cords
• Max. Capacity: 48 connectors ( Patch Panel is already loaded )
• Front Connection: Flush
• Termination Area: Rear
• Footprint/Type: KeyConnect
• Plug / Jack Compatibility: RJ45
• Storage Temperature Range: -40°C To +70°C
• Installation Temperature Range: -10°C To +60°C
• Operating Temperature Range: -10°C To +60°C
• Tool Compatibility: Belden 110 Connecting Tool (AX100749)
• Dielectric Strength: 1,000 V RMS @ 60Hz for 1 minute
• Current Rating: 1.500 A
• Insulation Resistance: 500 M-Ohm Minimum
• Max. Contact Resistance: 20m-Ohm
• Termination Resistance: 2.5 m-Ohm
• Dimensions: 3.5 x 19 x 1.3"
• Color: Black
• 2.500 lbs

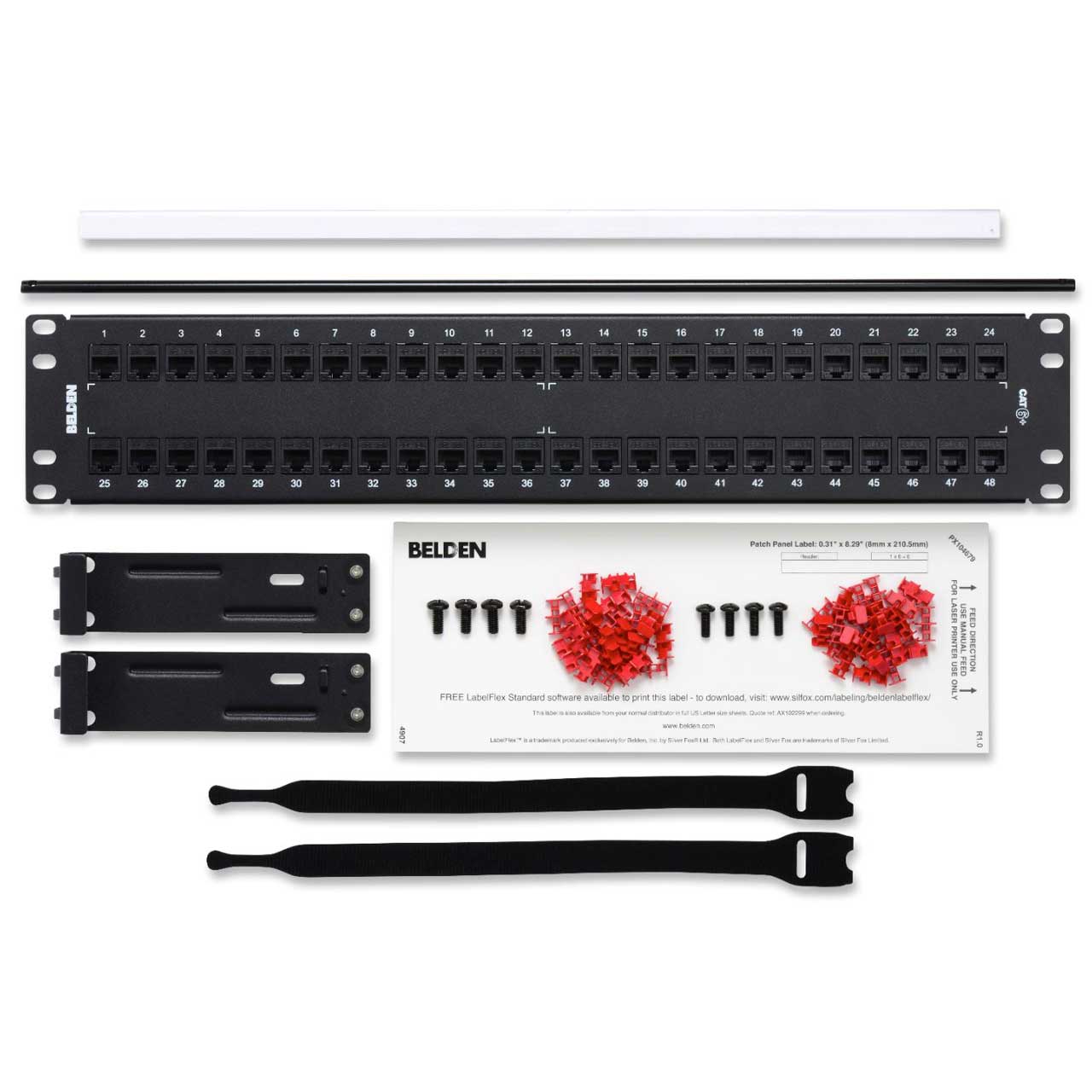

Item Includes:

• 4x Screws (10x32)
• 4x Screws (12x24)
• 1x Label Holder
• 1x Printable LabelFlex Half-Sheet
• 2x Velcro Straps
• 2x Rear Cable Management Bracket
• 1x Installation Guide
• 1x Kit termination Bar
