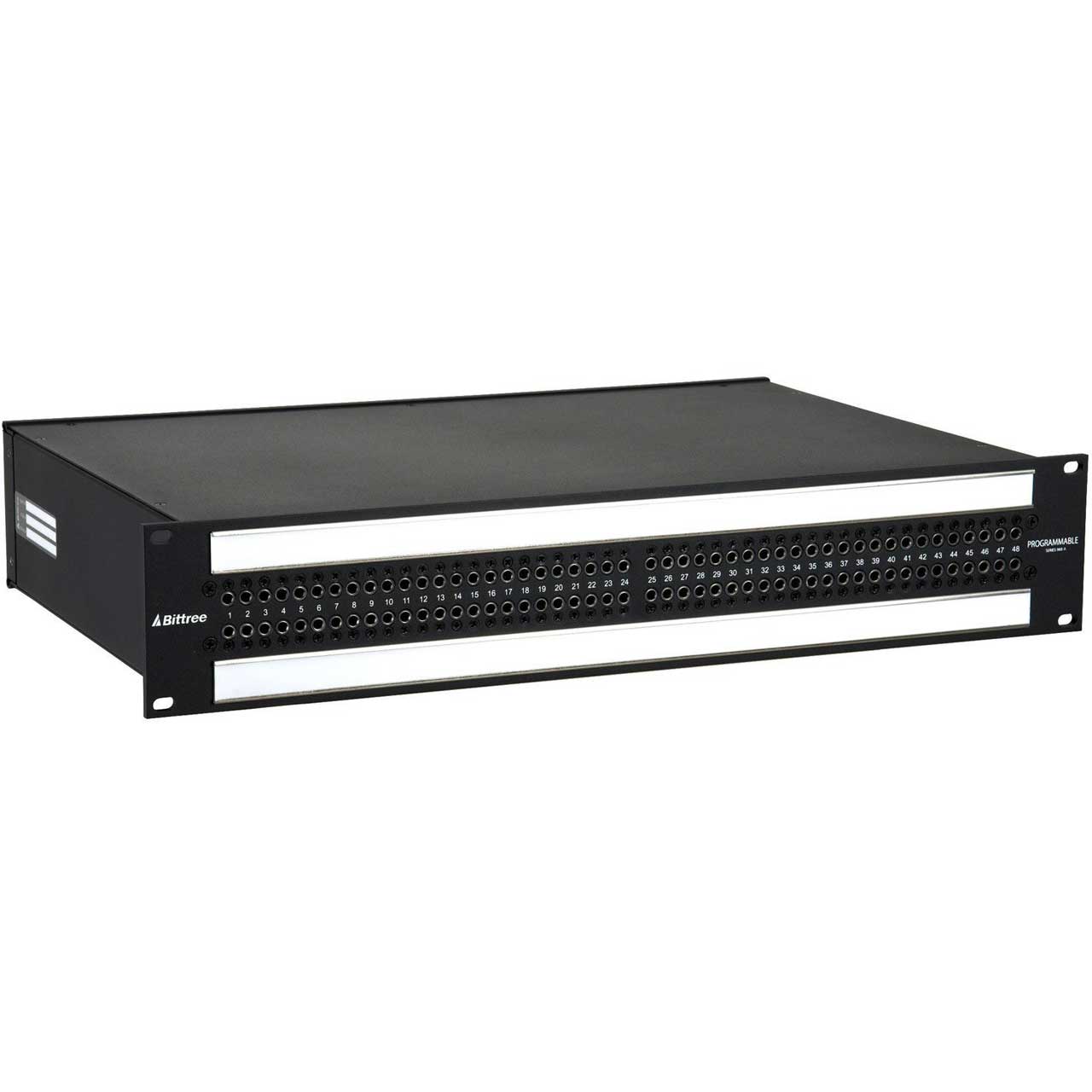

Bittree B96DC-NNAIT/E3 M2OU12B 2 RU Black 2x48 Mono Spaced Front Programable Bantam Patchbay

The B96DC-NNAIT/E3 M2OU12B is a 969S - 2X48 2RU TT Patchbay with Front Selectable TRS Audio and a High-density 2x48 jack configuration with mono (even) jack spacing. It features selectable normalling and grounding so circuits can be easily changed via shunts under both designation strips, and Digital AES wire used for internal wiring. The unit also features 1-48 left-to-right numbering on front panel for easy circuit identification and 2 x DS800-10SA-ASSY designation strip assemblies, "Over/Under" orientation.

Features:

• Bittree® Front Selectable TT (Bantam) 969a Series Audio Patchbay in 2RU


• High-density 2x48 jack configuration with mono (even) jack spacing
• Selectable normalling and grounding:
• Circuits can be easily changed via shunts under both designation strips
• Digital AES wire used for internal wiring
• 1-48 left-to-right numbering on front panel for easy circuit identification
• 2 x DS800-10SA-ASSY designation strip assemblies, "Over/Under" orientation
• Mating hardware included with E3, E90, and ID (Punchdown) rear interfaces
• 6" (15.24 cm) deep rear lacing bar included with E3 and ID (Punchdown) rear interfaces:
• Alternative 3" (7.62 cm) deep lacing bar available

Specifications:

• Limited Anniversary Edition available upon request
• Rear Interface - choose from four standard rear interfaces:
  E3 (3 pin ELCO connectors)
  DB25
  ID (Punchdown)
  E90 (90 pin ELCO connectors)
• Normalling & Grounding - choose from eight standard configurations or specify your own at checkout:
  Normalling - circuits can be programmed to full normal, half normal or non- normal
  Grounding - can be programmed to bussed, isolated, or looped
• Chassis Depth:
  12" (30.48 cm) deep, fully enclosed
  7" (17.78 cm) deep, fully enclosed
