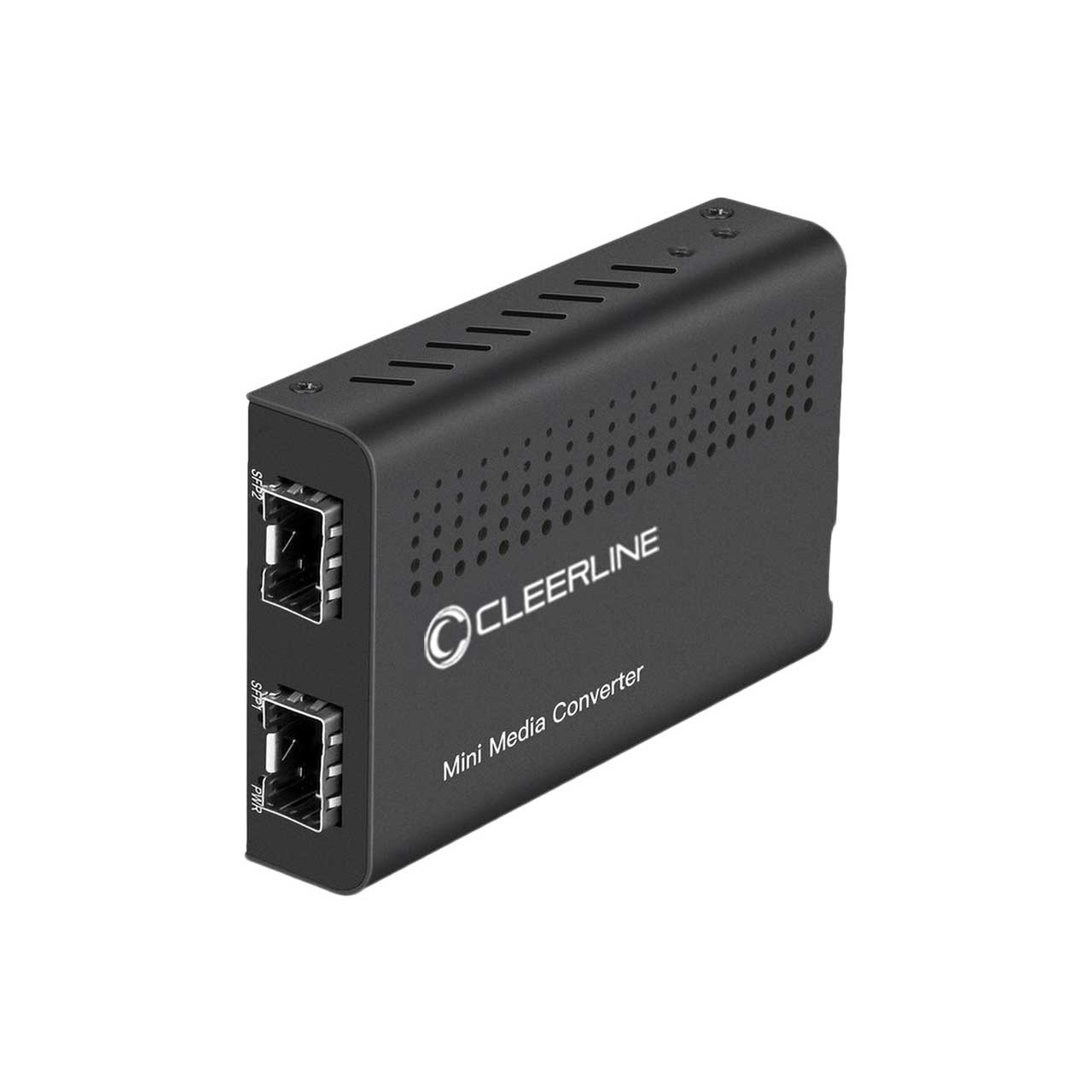

Cleerline SSF-SFP-SFP-CON Gigabit 1000Base-X to 1000Base-X SFP to SFP converter SSF-SFP-SFP-CON

The Cleerline SSF-SFP-SFP-CON is a fiber to fiber (SFP to SFP slot) multi-rate 155M to 2.5G speed non-managed stand-alone media converter. It has DIP switches for multiple configuration options. The SFP slot allows both Gigabit and Fast Ethernet operation, and can accept all SFP types, including multimode, single mode, CWDM, DWDM, or BiDi. BiDi allows bi-directional transmission over a single strand of fiber.

Power status, SFP port traffic, and link status for each port is indicated by the converter’s LED indicators.

Features:

• SFP to SFP slot Converter
• Any rate 155M to 2.5G supported, no rate conversion
• Completely transparent to protocol (Ethernet, Fiber Channel, SONET)
• Forwards any size packets in transparent converter mode
• Speed (data rate) must be identical on both ports
• Supports Q in Q double tagged frame transparent
• Supports IEEE 802.1Q Tag VLAN pass thru

Specifications:

• Optical Interface
• Connector: SFP slot x 2
• Data Rate: Any rate 155M to 2.5G
• Duplex Mode: Full duplex
• Fiber:
  MM 50/125µm, 62.5/125µm
  SM 9/125µm
• Distance: Depending on SFP used
• Wavelength:
  Depending on SFP used
  MM 1310nm, SM 1310, 1550nm
  WDM 1310TX/1550Rx (Type A)
  WDM 1550TX/1310Rx (Type B)

  Operation & Details
• Operating Temperature: 32° to 122°F (0° to 50°C)
• Operating Humidity: 10 to 90% non-condensing
• Storage Temperature: 14° to 158°F (-10 to 70°C)
• Dimensions: 3.54 x 2.36 x 0.79" (90 x 60 x 20mm) (SFP transceiver and AC adapter not included)
• Weight Adapter: 0.20Lbs (90g)
• Converter: 0.26Lbs (120g)

  Standards And Power
• Standards: IEEE 802.3, 802.3u, 802.3Z, 802.3ab
• Indications: LED (Power, SFP1, SFP2)

  Power Input
• Adapter Type: DC 5V/1A
• Power Input: AC 100 ~ 240V, 50-60Hz
• Power Plug: US 2 blade, type A Connector
• Power Consumption: <4W
• Certification: CE, FCC
• MTBF: 65,000 hrs
