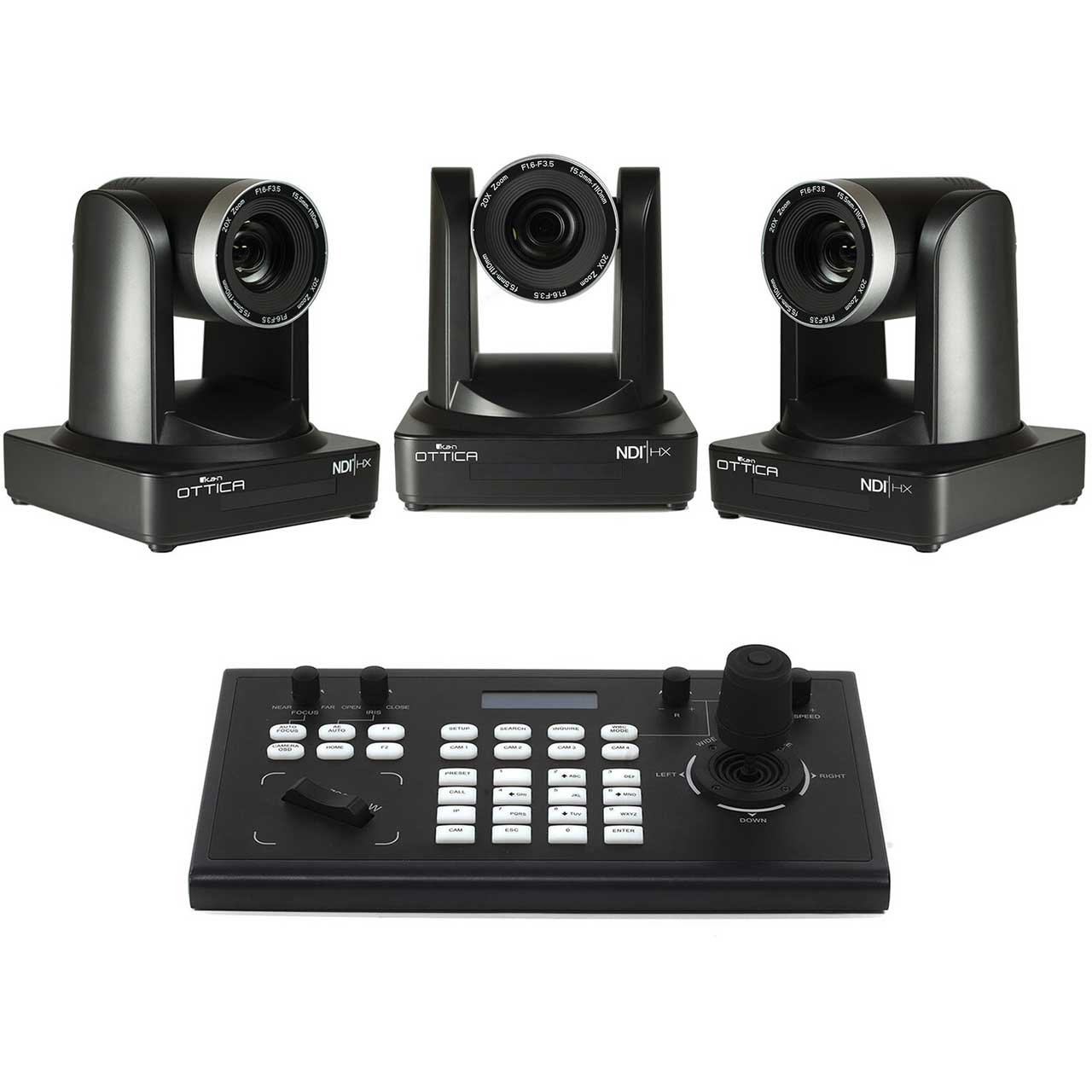

ikan OTTICA-3PTZ-1C 1080P Bundle with 3x NDI/HX PTZ Cameras and 1x IP Controller OTTICA-3PTZ-1C

This OTTICA-3PTZ-1C bundle includes 3 OTTICA™ NDI|HX PTZ Video Cameras and the OTTICA™IP PTZ Camera Controller and will allow you to install a streaming multi-camera video production. Switching between & controlling multiple OTTICA cameras with the IP Controller is an ideal solution for house of worship, broadcast, education, medical, sports, and live production applications.

OTTICA™ NDI|HX PTZ VIDEO CAMERA
The OTTICA™ PTZ Video Camera from Ikan features a 1/2.8" CMOS sensor and 5.5-110mm varifocal lens with 20x zoom to capture videos at a maximum resolution of 1080p at 60fps. It supports POE (802.3af), HDMI, SDI, Ethernet (NDI|HX), RS-232, RS-485, and audio-in connectivity. The camera uses a step drive motor mechanism and motor drive controller for smooth and noiseless PTZ operation. In addition, it supports H.264/H.265 video compression and AAC, MP3, and G.711A audio compression formats.

Features:

• NDI®|HX Compatibility with POE (Power Over Ethernet)
• 1/2.8" CMOS Sensor/1080/60P Resolution/Frame Rate
• Silent PTZ Motor Mechanism
• 5.5-110mm Varifocal Lens with 20x Zoom
• HDMI, SDI, Ethernet, RS-232, RS-485, & Audio-in Connectivity
• NDI HX License INCLUDED with Purchase
• Controller Supports ONVIF, VISCA, Serial Port VISCA, PELCO-D/P Protocols
• Control up to 255 Cameras with RJ45, RS422, RS232 Interfaces
• Recommended IP Scanning

Specifications:

• Shipping Weight: 26Lbs
• Shipping Dimensions: 22 x 18 x 16"
• Aperture: F1.6 - F3.5
• Aspect Ratio: 16:9
• Audio Compression Format: AAC/MP3/G.711A
• Audio Input Interface: A-IN: Double Track 3.5mm Linear Input
• Audio Output: Yes
• Auxiliary Power: Yes
• Base Connection Type: 1/4"-20 Screw Mount
• BLC: ON/OFF
• Color Temperature: 2400k - 7100k
• Communication BPS: 2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 115200bps
• Control: IR Remote Controller, PELCO-D Protocol, PELCO-P Protocol, VISCA Protocol
• Control Interface: RS232 (input & output), RS485
• Control Protocol: IP VISCA, VISCA, PELCO-D, PELCO-P, ONVIF; Baud Rate:115200/9600/4800/2400bps
• Data Output Interface: Protocol Network: ONVIF, VISCA
• Digital Resolution: 1920x1080p
• Display: Controller: LCD Blue Screen
• DNR: 2D & 3D DNR
• Effective Pixels: 16: 9, 2.07 megapixel
• Focusing: Auto, Manual, One Push Focus
• Input Audio Format: 1/8"
• Input Current: 1A (Maximum)
• Input Voltage: DC12V±10%
• Inputs: CAMERA: 1/8" Audio, RS-232 Cascade, DC12V / CONTROLLER: RJ45, RS422, RS232
• Interface: CAMERA: SDI, HDMI, LAN(NDI), RS232 (In & Out), RS485, A-IN / CONTROLLER: RS422 (5PIN), RS232, RJ45
• Modulation Mode: OFDM
• Motor Type: Step-Driving Motor Mechanism
• Network Protocol: RTSP, RTMP, ONVIF, NDI|HX (Optional), Network VISCA Control Protocol, Support Remote Upgrade, Reboot and Reset.
• Noise Db: SNR >55dB
• Operating Temperature: CONTROLLER: 32° to 122°F
• Optical Zoom: 20x f=5.5 - 110mm
• Output Interface: HDMI, 3G-SDI, LAN (NDI|HX), USB3.0, USB2.0
• Output Video Format: LAN (NDI|HX), HDMI, 3G-SDI, 1080p60, H.264, H.265
• Output Voltage: DC12V
• Outputs: RS-232, RS485, 3G-SDI, HDMI, NDI|HX
• Pan Control Speed: 0.1 -60°/sec
• Pan Rotation: ±170°
• Port Network: RJ45
• Power Adapter: Input: AC110V-AC220V. Output: DC12V/1.5A
• Power Consumption: CAMERA: 12W (Max) / CONTROLLER: 0.6 W (Max)
• Power Interface: HEC3800 Outlet (DC12V), 2-pin Waterproof Aerial Socket (RF Model)
• Power Supply: DC12V±10%
• Preset Number: 255 presets (10 presets by Remote Controller)
• Preset Speed: Pan: 60°/sec, Tilt: 30°/sec
• Remote Control: IR Remote Included
• Resolution: 1080p 60fps
• Sensor: 1/2.8 inch HD CMOS sensor
• Serial Port: RS422, RS232
• Storage Temperature: 14° to 140°F (-10° to 60°C)
• Storage Humidity: 20% - 95%
• Tilt Control Speed: 0.1-30°/sec
• Tilt Rotation: 30° - +90°
• Transmission Distance: ?300m (Outdoor without blocking), ?150m (Indoor without blocking)
• Transmission Power: 17dBm
• Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W Mode, Gamma Curve
• Video Compression Format: H.264, H.265
• Viewing Angle: 3.3° - 54.7°
• Voltage: DC12V
• White Balance: Auto / Manual/ One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
• Working Humidity: 20% - 80%
• Working Temperature: 14° to 122°F (-10° to 50°C)

Item Includes:

• 3x OTTICA PTZ Camera
• 3x Camera Power Adapter
• 3x Lens Cap
• 3x Mounting Screws
• 3x RS232 Cable
• 3x IR Remote Controller
• 3x Wall Mounting Bracket
• 3x RS485 Connector
• 3x Cascade Cable
• 1x OTTICA IP PTZ Controller
• 1x RS422 Connector
• 1x Controller Power Adapter
• 3x Camera User Manual
• 1x Controller User Manual

,
