Kramer KT-1010 10 Inch Wall and Table Mount PoE Touch Panel - Black KT-1010

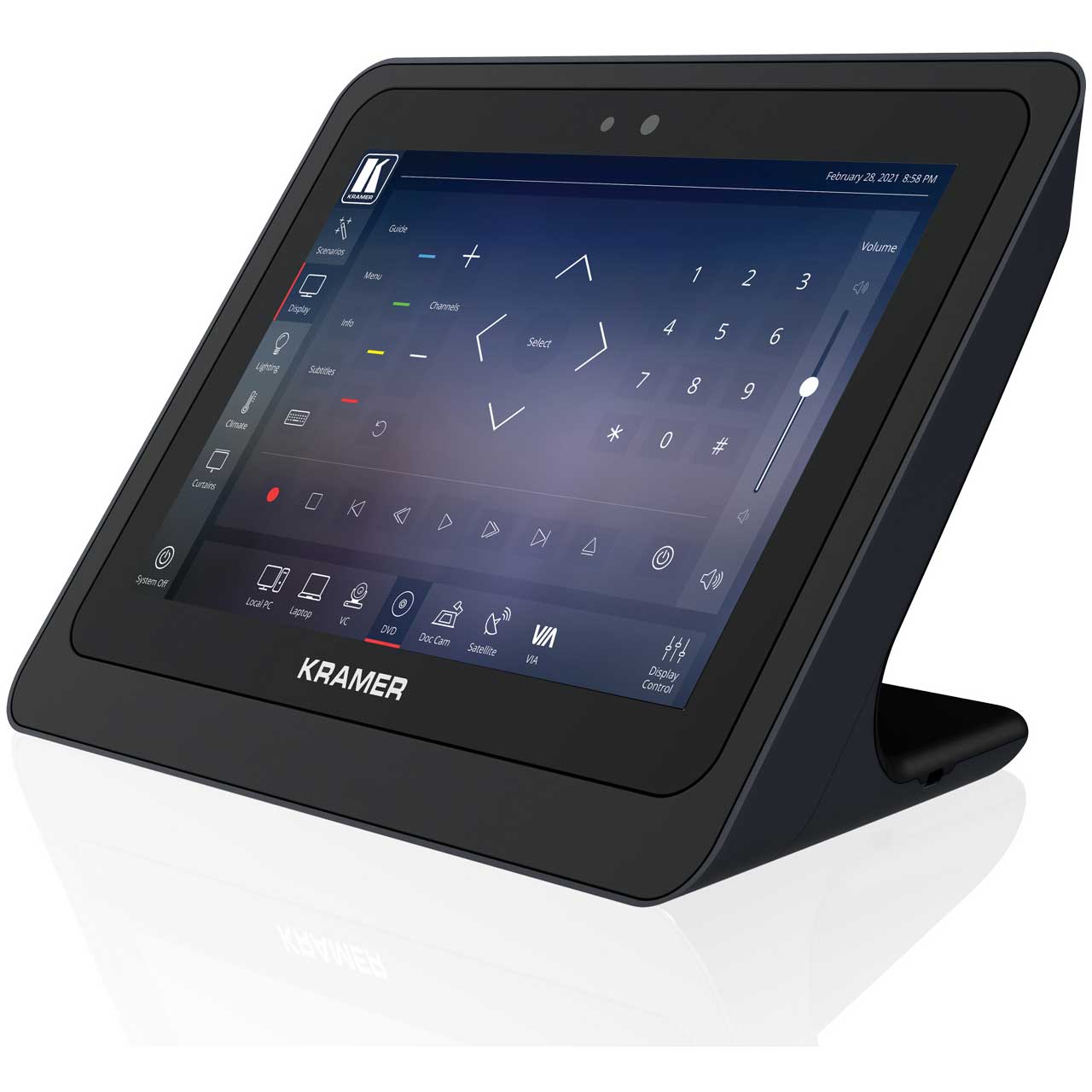

Kramer KT-1010 is a powerful, 10-inch, IPS, multi-touch, touch panel with 1280x800 resolution. Elegantly designed for decorative room integration, this portable touch panel can be deployed either on a tabletop or wall. KT-1010 supports wired PoE (Power over Ethernet) and advanced Wi-Fi connectivity options. The touch panel comes with table and wall mounts, a USB cable and a power supply unit that enable easy installation, elegant wiring, secured mounting, reliable operation and flexible deployment. KT-1010 is an Android based touch panel that is ideal for any 24/7 Kramer-supported commercial AV or control application and features a user-friendly, fully customizable graphical user interface configured by Kramer software.

Features:

• Elegant Design - Smooth integration with room furniture design, either on table or wall, with flexible panel cabling and locking design options.
• Superior User Experience - IPS 1280x800 hi-resolution screen with ±80° horizontal and vertical wide viewing angles, built-in lighting sensor for auto-adaptable brightness, and advanced 10 multi-touch points and 2-finger gesture capabilities.
• Powerful Processing - Quad-core CPU, GPU, 2GB RAM, 8GB ROM processing performance, smoothly running complicated media and graphics-rich applications, such as H.265 video, audio streams encoding and decoding, and seamless hi-resolution 2Mp HD front camera operation.
• Flexible Services - Advanced Android 6.0 operating system with diverse Kramer and market-available applications from cloud/store offerings.
• Easy Installation - Powering and connectivity via a single Ethernet cable.
• Flexible Mounting - Including table and wall mounts.
• Optional Connectivity - Simple wireless BTLE 4.0 Bluetooth as well as connection to USB peripheral devices for either table or wall-mount installations, using the included USB cable.
• Reliable Networking - Seamless switching between wired and wireless 802.11ac connectivity.
• Versatile Powering Options - PoE and power adapter.
• Auto Sensing - Optimized performance and operation according to automatically detected LAN speed.
• Firmware Update - Via USB port.
• Secured Deployment - Flexible locking options to prevent unwanted panel mount removal, elegantly designed to remain out of site.
• Secured Operation - Highly secured operation of applications using password protection, hidden control buttons and more. Red LED alert when camera is active.

Specifications:

• PORTS
• 1 Ethernet: On an RJ-45 connector
• 1 SD card: On an SD card (SDHC Class10 compatible) slot
• 1 USB: On a USB 2.0 type A connector
• 1 USB: On a micro USB 2.0 connector
• 1 Headphone: On a 3.5mm mini jack connector

  GENERAL
• CPU Performance: GCortex-A17, quad core, up to 1.8 GHz
• GCPU: Mali-T764, with TE, ASTC, AFBC technology
• System Memory: 2GB DDR3 SDRAM
• Internal Storage Memory: 8GB eMMC
• External Storage Memory: SD card (SDHC Class10 compatible)
• Touch Panel Type: 10 point capacitive multi-touch type
• Wireless Communication: IEEE 802.11 a/b/g/n/ac, Bluetooth: BT4.2
• Ethernet: 10/100/1000 Mbps LAN

  AUDIO
• Speaker unit: 2W+2W
• Supported Formats: MKV, TS, FLV, AVI, VOB, MPG, DAT, ASF, RM, MOV, 3GP, MP4, WMV
• Camera: 2M pixels (optional)
• Supported Formats: MP2, WMA, WAV, AAC, OGG, ASF

  PHYSICAL
• Display Type: TFT LCD
• Display Size: 10.1" (16:9 diagonal), 1280 RGB (H) x 800(V) pixels
• Viewing Angle: 75° - 85° horizontal/vertical
• Contrast Ratio: 350cd/m2 brightness, 800:1
• Back-light: LED Side-light type
• VESA Mounting Ready: Metal-fittings mounting screw holes for 75x75mm VESA mount

  POWER
• Source: 12V/2A DC adapter
• POE: Power over Ethernet (optional)

  USER INTERFACE
• Controls: Volume, menu, and power buttons
• Indicators: LED sidebars to indicate room status

  ENVIRONMENTAL CONDITIONS
• Operating Temperature: 0° to +40°C (32° to 104°F)
• Storage Temperature: -10° to +55°C (14° to 131°F)
• Humidity: 10% to 90%, RHL non-condensing

Item Includes:

• KT-1010 Touch Panel
• 12V AC/DC power adapter (1)
• Tabletop Mount (1)
• On-wall Mount Bracket Kit (1)
• Panel Mount Bracket (1)
• Installation Screw Pack (1)
• Allen Key (1)

Warranty:

• Standard three (3) year warranty
