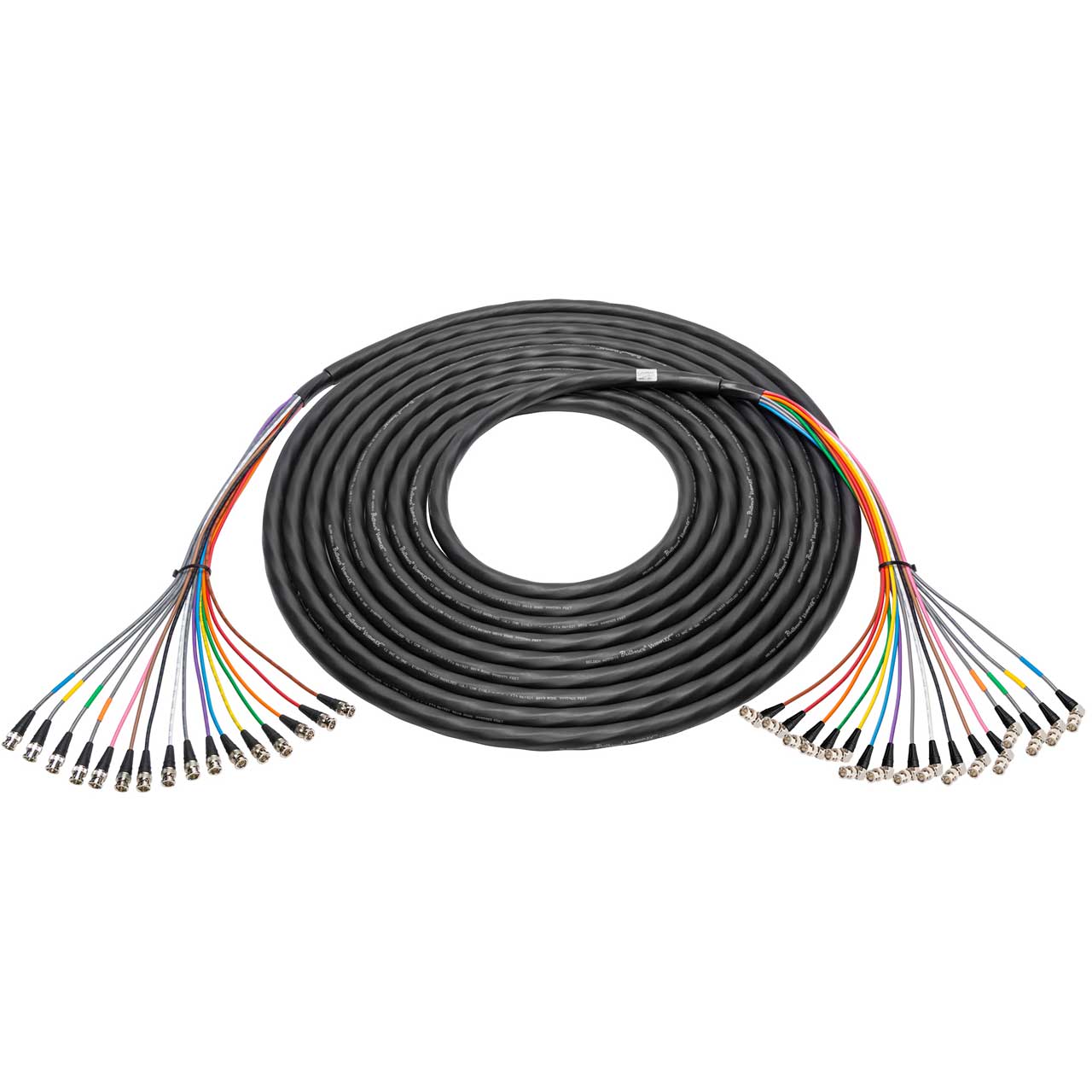

Laird 4855R16-BBA-125 16-Channel 12G-SDI/4K UHD BNC Male to Right Angle BNC Male Snake Cable - 125 Foot 4855R16-BBA-125

Laird 16-Channel 4855R 12G-SDI/4K UHD BNC snake cables are the next-gen Mini-RG59 BNC cable designed to handle 12GHz 4K UHD signals with a clean signal delivery up to 150 feet (3G-SDI up to 300 feet). These BNC Male to Right Angle BNC Male cables provide the critical link between your switchers, cameras and other 4K video gear. Hand crafted assemblies featuring 4855R 4K Ultra-High-Definition coaxial cable for 12G-SDI, these cables are the simple choice when setting up your studio backbone and infrastructure. Why run multiple cables when one will do the job! Laird's BNC cables are ready to meet today's high bandwidth 12G-SDI signal / data serial interface requirements. The 4855R Series is the 12G-SDI equivalent of Belden's famous 1855A cable. It features a silver plated copper center conductor and is the ideal choice for installations in studios, stadiums and live event venues. Custom lengths are always available.

Features:

• Space Saving 16 Channels in One Snake
• Easy Handling & Portability
• Each Channel Rated for 12G-SDI
• Flexible Cable Suitable for Studio or Field Applications
• Strain Relief Boots for Fast Identification
• Quick/Disconnect with BNC Connectors
• Meets 2082-1, 2081-1, and 424M Standards

Specifications:

• 23 AWG Mini Coax CMR Cable with PVC Jacket
• Silver-Plated Copper Stranding
• Tinned Copper Braid
• Gas Injected FHDPE Insulation
• Impedance 75?
• Capacitance: 16.3 pF/ft
• Nominal Inductance: 0.107 ?H/ft
• Overall Min Bend Radius: 9.2 in / Each Coax Min Bend Radius: 1.6 in
• Nickel Plated BNC Connectors

Warranty:

• 1 Year
