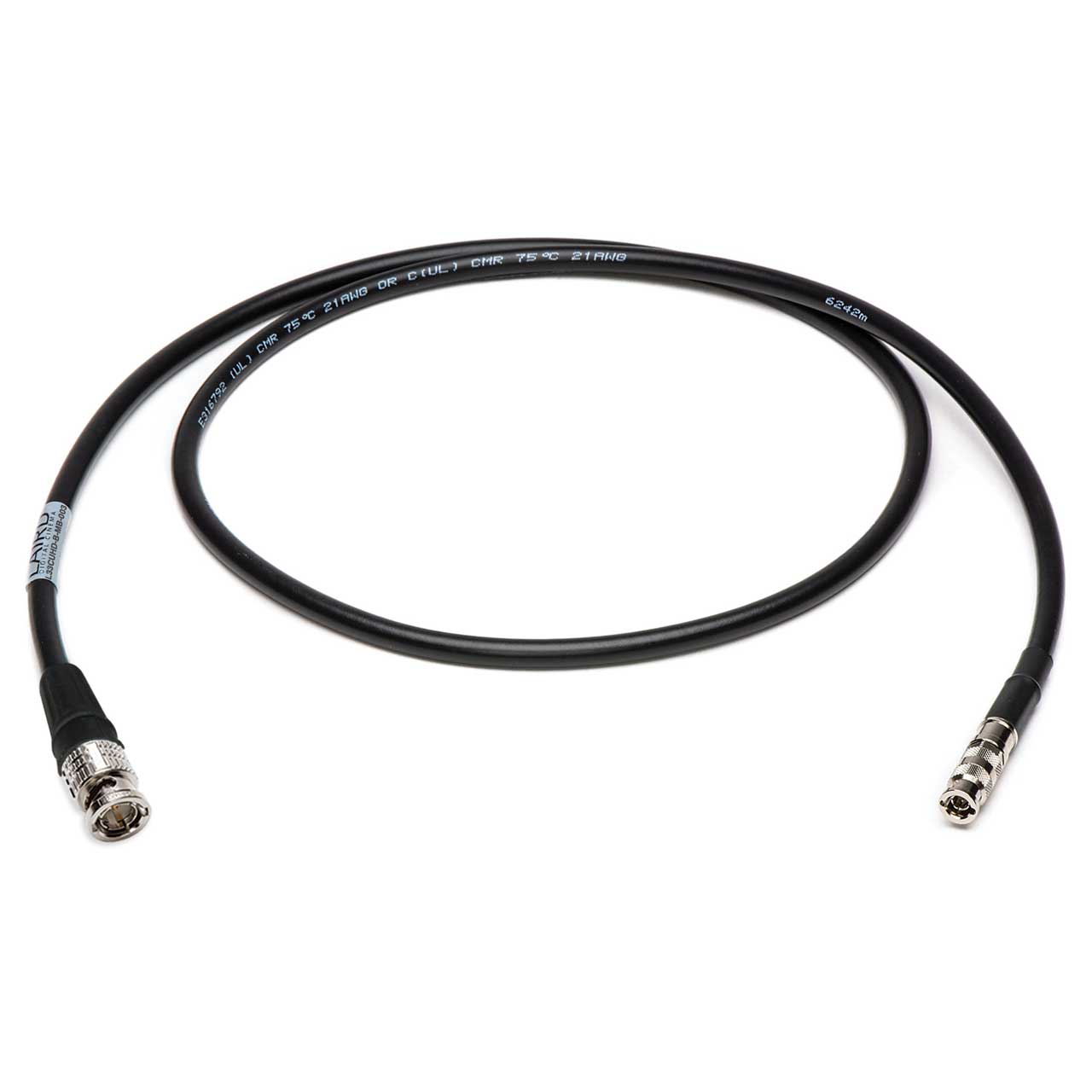

Laird L33CUHD-B-MB-003 12G-SDI 4K UHD Mini-Coax BNC Male to HD-BNC/Micro BNC Male Cable - 3 Foot L33CUHD-B-MB-003

As 12G / 4K UHD continues to shape the landscape of broadcast TV, sports, live events, and commercial production workflows, Laird delivers the most advanced BNC cables on the market for effectively transmitting 12G-SDI signals up to 190 feet. Utilizing Canare L-3.3CUHD coaxial, these 12G-SDI BNC cables are the right choice to future-proof new rack to rack studio builds, OB truck layouts, patching, and content delivery networks as a permanent install solution. Its lightweight and small diameter makes it an excellent option for camera to recorder and similar support interface products where 12G-SDI is run. This coax cable has enhanced attenuation characteristics that allow transport of 12G signals at much greater distances than comparable-sized coax. Cables are fully SMPTE ST-2082-1 compliant and handcrafted with Canare L-3.3CUHD miniature coaxial, BCP-D33UHD BNC, and HBCP-D33UHD micro BNC connectors. A superb return loss at 12 GHz of 15 dB, 20 dB @ 6 GHz & 26 dB @ 3 GHz makes these cables perfect for 12G, 6G and 3G systems.

Features:

• Compliant with SMPTE ST-2082-1 standards
• Designed for Low Attenuation 3G/6G/12G-SDI Transmission
• Copper Foil and High-Density
• inned Copper Braided Shielding
• Flame Retardant Polyvinyl Sheath
• Highly-Foamed, Multi-Layer PE Insulation
• Max Transmission Distance @12G-SDI: 190 Feet

Specifications:

• Canare L-3.3CUHD 75? Coaxial Cable
• Center Conductor: Annealed Copper 21 AWG
• Outer Conductor: 1/0.75A Cu Foil with TC Braid
• Attenuation dB/100m @ 6GHz = 68.5
• OD 5.5mm
• Tensile Strength: >=12.8Mpa
• Nominal Capacitance: 55nF/km (1kHz)
  Canare BCP-D33UHD BNC Plug
• Return Loss: 3GHz - 26.4dB/ 6GHz - 20dB/ 12GHz - 15dB
• Nominal Impedance: 75? Unbalanced
• Insulation Resistance: 5000m? or More
• Contact Resistance: Between External Contacts: 3m? or less; Between Center Contacts: 6m? or less
  Canare HBCP-D33UHD Micro BNC Plug
• 12G-SDI 4KUHD
• Return Loss: 3GHz - 20dB/ 6GHz - 13dB/ 12GHz - 8dB
• Nominal Impedance: 75?

Warranty:

• 1 Year
