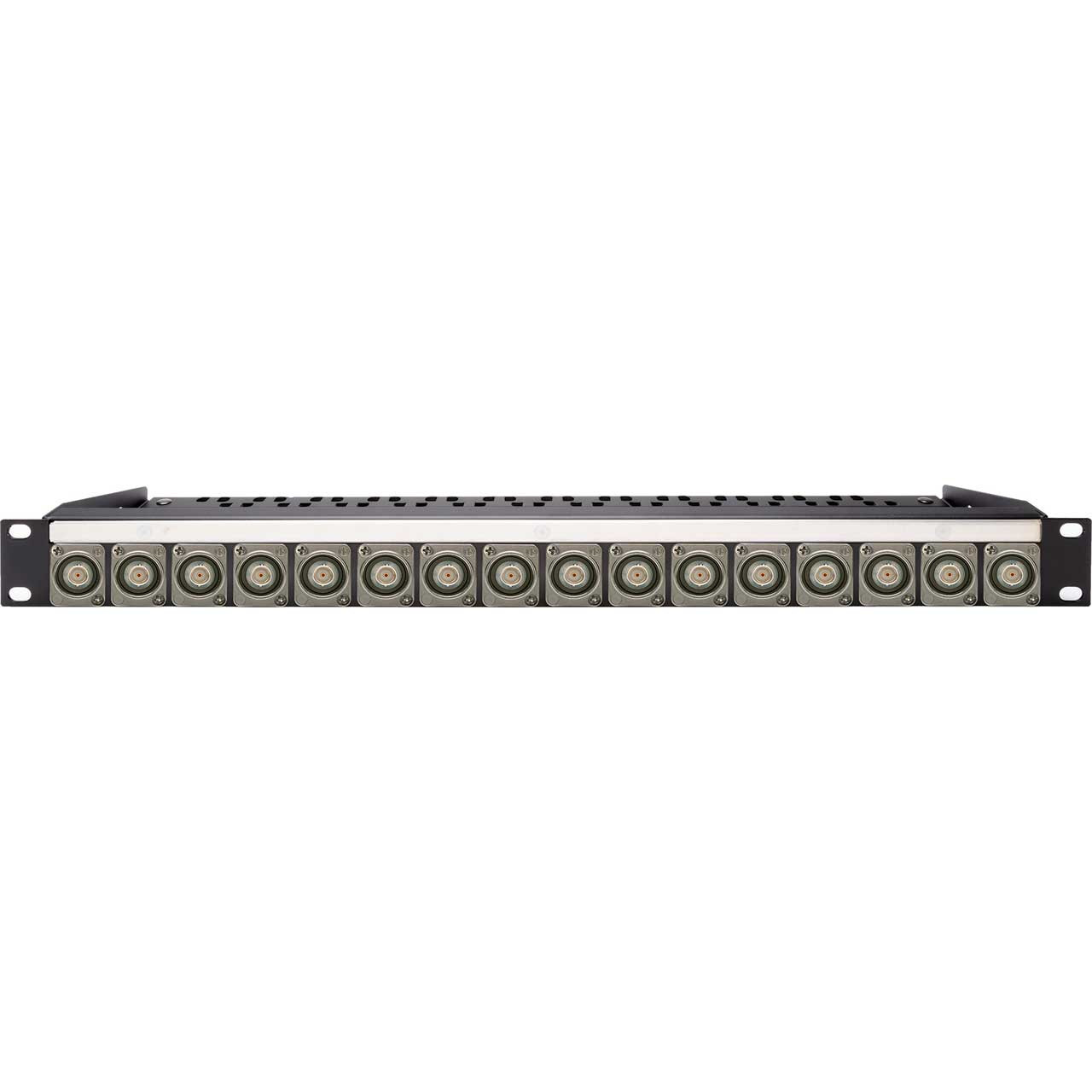

My Custom Shop 16XUHD-BNCR-L 16-Port 4K / 8K 12G-SDI Feed-Through BNC Patch Panel with Rear Lacing Bar- 1RU 16XUHD-BNCR-L

The My Custom Shop 16XUHD-BNCR-L is a handy BNC patch panel for any studio, OB truck or production rack needing a simple way to route signals between cameras, recorders, CCUs and more. The 16XUHD-BNCR-L gives access to up to 16 critical patch points and a rear lacing bar for cable management. My Custom Shop proudly builds video rack panels and patchbays in its US facility using only quality components from suppliers such as Neutrik, Switchcraft, Canare, and Senko. With 20 years of experience in the custom metal plate and panel industry, My Custom Shop now offers a diverse variety of standard models in 1, 2, and 3RU sizes, with connector options including BNCs, RCAs, F-connectors, HDMI and more.

Features:

• Corrosion Resistant
• Designed for 4K/8K UHD, 12G-SDI Equipment Patching
• Quality Neutrik BNC Connectors
• SMPTE ST 2082-1, ST 2081-1, ST424, ST292 Compliant
• Rear Lacing Bar for Cable Management
• ID Strip for Connector Identification

Specifications:

• Standard 1RU Size
  Neutrik NBB75DFGX:
• Grounded 75 Ohm 4K/8K UHD D-Style Chassis Mount BNC Connector
• Low return loss
• Optimized gold plated cage type center contact for UHD signals as 4K or 8K
• Swiss black chrome plating
• Fully compatible with conventional BNC cable connectors
• Contact resistance: inner ? 3 m? / outer ? 2 m?
• Dielectric strength: 1.5 kVDC
• Insulation resistance: 5 G?

Warranty:

• 1 Year
