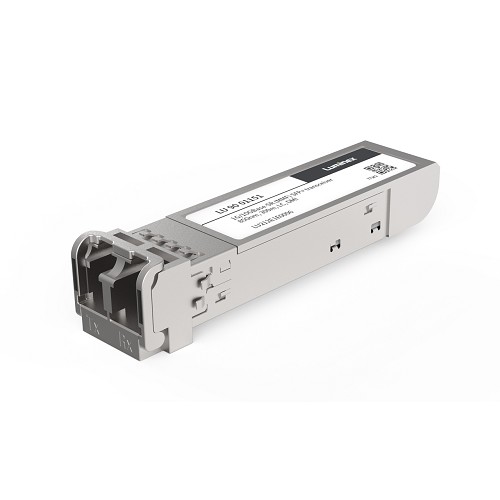

Luminex 1G/10G Base Hot Swapable SFP+ MultiMode Fiber Transceiver - 850nm - 300m Duplex LC LU9001151

This Luminex LU9001151 multimode fiber (MMF) SFP+ transceiver provides dual-rate 1G/10GBase-SR throughput to up to 300m, making use of a wavelength of 850nm over a duplex LC connector. This easy-to-install and hot pluggable/swapable transceiver is programmed and tested to be fully compatible with the real time analytics and diagnostics functions built into GigaCore and Araneo and is compliant with the IEEE 802.3ah specification. Its wide temperature range ensures reliable operation in the most diverse applications.

Features:

• SFF-8432 and SFF-8472 Compliant
• TAA Compliant
• Duplex LC Connector
• Multimode Fiber
• Hot Pluggable
• Remote diagnostics with Araneo
• Industrial Temperature Range

Specifications:

• Operating Temperature: -40°F - 185°F (-40°C to 85°C)
• Storage Temperature: -40°F - 185°F (-40°C - 85°C)
• Humidity: 5% - 85% RH
• Connectivity: Duplex LC connector
• Maximum Bitrate: 11,13Gbps
• Optical Power (Avg.):
  - Min: -7.3dBm
  - Max: -1.2dBm (Coupled in multimode fiber)
• Optical Modulation Amplitude (OMA): Min: -1.5dBm (Per IEEE 802,3ah specification)
• Optical Wavelength:
  - Min: 840nm (Typ. 850nm)
  - Max: 860nm
• Max Sensitivity (Avg.): -9.9dBm
• Max Senitivity(OMA): -11.1dBm
• Receiver Wavelength (Min - Max): 840nm - 860nm
• Receiver Overload (Min): 1dBm
• Dimensions (LxWxH): 2.21" x 0.52" x 0.33" (56.2mm x 13.4mm x 8.5mm)
• Unit Weight: 0.03lbs (18g)

Warranty:

• 2 Year Limited Warranty
