MuxLab 1x4 4K60 HDMI 2.0 Splitter - HDCP 1.4 and 2.2 Compliant 100506

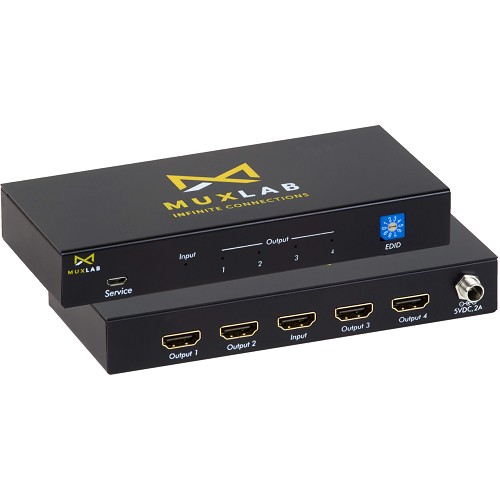

The MuxLab 100506 HDMI 1x4 Splitter allows 1x HDMI source to be distributed to up to 4x HDMI displays. The splitter supports up to 4K (3840 x 2160) video and HD audio. The splitter is HDCP 1.4 & 2.2 compliant, supports EDID management and features LED diagnostics. Additionally, all connectors are on the rear panel for neater cabling.

Applications:
• Commercial and Residential AV systems
• Classroom projector systems
• Digital signage
• Boardroom systems
• Collaborative PC systems
• Medical information systems

Features:

• Supports up to 4K @ 60Hz (4:4:4)
• HDCP 1.4 and 2.2 compliant
• Supports Dolby Vision, HDR and Deep Color
• Supports LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X
• Supports EDID management
• LED diagnostic

Specifications:

• Environment: HDMI 2.0a
• Devices: Ultra HD Blu-Ray, projectors, monitors, TV, PC, laptops.
• Transmission: Transparent to the user.
• Video Bandwidth: 18Gbps
• Frequency Range: 25MHz - 600MHz
• Signals: HDMI 2.0a protocol.
• HDCP: Revision 1.4 & 2.2 compliant.
• Connectors: HDMI receptacle.
• Rotary Switch: For setting the EDID to be sent to the source
• LEDs:
  - Power: Blue
  - Input & Output Link: Blue
• Resolution:
  - 480i to 1080p @ 50/60fps
  - 1080p @ 24/50/60fps
  - 3840 X 2160 @ 24/25/30/60fps
• Color: 8, 10 & 12 bit
• Audio:
  - LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master
  - Audio and DTS:X
• Cable: HDMI cable of appropriate length for video resolution selected.
• Power Supply: 1x 110V - 240V/5VDC , 1A power supply
• Temperature:
  - Operating: 32°F - 104°F (0°C - 40°C)
  - Storage: -4°F - 140°F (-20°C - 60°C)
• Humidity: Up to 90% non-condensing
• Enclosure: Metal enclosure
• Dimensions: 6.06" x 2.72" x 0.91" (155mm x 68mm x 24mm)
• Weight: 1.1lbs (0.5kg)

Item Includes:

• 1x 100506 Splitter
• 1x 110-240V/5VDC , 1A power supply

Warranty:

• 1 Year Limited Warranty
