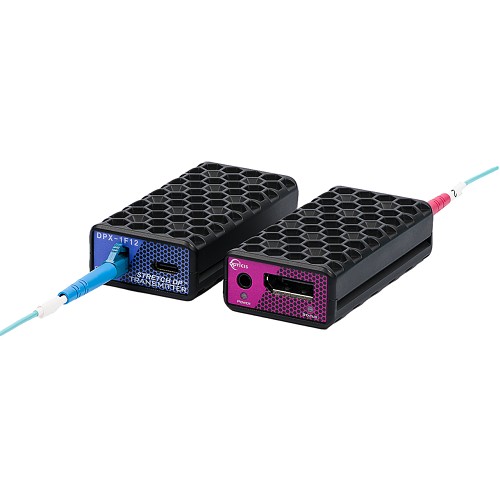

Opticis 4K DisplayPort 1.2 Optical Extender with Transmitter and Receiver - Extends 984ft over One LC MM OM3 DPX-1F12-TR

The Opticis DPX-1F12-TR is a high-performance DisplayPort 1.2 fiber optical extender, transmitting 4K (4096x2160) at 60Hz up to 984ft (300m) over 1x LC multimode fiber (OM3). It offers a 9.84ft (3m) extension for both transmitter and receiver sides, enhancing installation flexibility.

When connecting with BR-600, the built-in Diagnosis Feature allows remote monitoring and management to ensure real-time error detection and reduced downtime. Combining robust performance, advanced diagnostics, and versatile extension options, the DPX-1F12-TR is an ideal solution for demanding AV installations.

Applications:
• Medical Imaging
• Military
• Digital Signage
• Control Room
• Flight Simulation
• Rental Staging

Features:

• TAA Compliant
• Extends up to 4K (4096x2160) at 60Hz
• Supports DisplayPort 1.2 standards for seamless high-definition audio and video
• Transmits data up to 984ft (300m) over one 1x LC multimode fiber (OM3)
• Extra copper extension available up to 9.84ft (3m) on each side (TX/RX)
• Supports MST (Multi-Stream Transport)
• Data security with negligible EMI emission
• Diagnosis Link Manager (GUI program) will be provided to manage firmware upgrades
• Compatible with Power Rack (BR-600), supports up to 8 units of Opticis diagnosis extenders, and offers a one-step feature at a one-time
• Diagnosis features can check the status of products and manage them from a long distance
• Firmware upgradable via USB Type C port
• Certifies FCC and CE standards for EMI/RFI emission

Specifications:

• Resolution: Up to 4K (4096x2160) at 60Hz
• Bit Rate: Total 21.6Gbps (5.4Gbps/lane)
• Maximum Distance: Up to 984ft (300m)
• Fiber Type: 1x LC multimode fiber (OM3)
• Power Supplying: External DC power 5V/1A
• Power Consumption: < 2.5W
• Operating Temperature: 32°F - 122°F (0°C - 50°C)
• Operating Humidity: 10% - 85% RH (non-condensing)
• Dimensions (LxWxH): 1.53" x 2.99" x 0.78" (39mm x 76mm x 20mm)
• Weight: 1.94lbs (.87kg)

Item Includes:

• 1x Transmitter
• 1x Receiver
• 2x 6.56ft (2m) Male to Male DisplayPort copper cable
• 2x 5V 1A power adapter
• 1x User Manual

Warranty:

• 1 Year Limited Warranty
