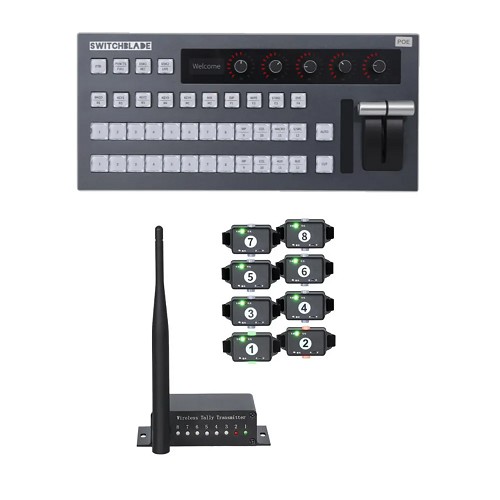

PTZCam 8-Light Wireless Tally System Bundle with Switchblade VMC12 vMix 12-Channel Control Surface PTZC-TALLY8-VMC12

The PTZCam PTZC-TALLY8-VMC12 is a special bundle that includes the PTZCam TALLY8 8-light wireless tally system with the Switchblade VMC12 12-channel vMix control surface.

The PTZCam TALLY8 lets you add 8x wireless tally lights to any cameras and control them with the Switchblade VMC12 vMix control panel. Connect the wireless host station to the VMC12 panel and the panel to your vMix computer by USB or network cable. The 8x tally lights will sync directly with the first 8 channels of your vMix project, changing from preview (green) to program (red) with no perceptible latency.

The VMC12 is also compatible with Blackmagic ATEM, making the TALLY8 a great solution for studios built around these popular switchers. The integration between the switcher and the tally lights happens in the controller by passing tally signals from the ATEM switcher through the controller and out to the lights.

Features:

• Wireless Host Unit and 8x Tally Lights with vMix/ATEM compatible control panel
• Connect Tally Lights up to 984ft Away
• Built-In Batteries in Host & Lights
• Low Transmission Power
• Lights Feature 2x Colors (Green and Red)
• Control up to 12 channels in vMix over USB or LAN
• Control up to 12 channels of Blackmagic ATEM over LAN
• Panel features high-quality T-bar for transition control

Specifications:

Switchblade VMC12
• Audio Controls: Master audio level + 4 individual channels
• Transition Control: Auto, Cut, T-bar transitions
• Display: Configuration and customization via OLED menu display
• Indicator Light: Red/Green LED backlights indicate switcher status
• Tally: 12-channel preview and program tally control
• Connection Methods: IP connection via RJ45 LAN (POE 802.3af supported), USB 2.0 cable direct connection
• Input Control: 12 channel preview/program
• Transitions: 4x transitions mappable to buttons
• Overlays: 4 overlay channels (R1/R2/R3/R4)
• Playback Control: 2 playback channels (M1/M2)
• Other Controls: Record, Stream
• ATEM Specific Functions
• Connection Method: IP connection via RJ45 LAN (POE 802.3af supported)
• Input Control: 12 channels
• Transition Effects: 5x transition buttons (MIX/DIP/WIPE/STING/DVE)
• Upstream Keyer Control: 4x Key buttons (BKGD/KEY1/KEY2/KEY3/KEY4)
• Downstream Keyer Control: 2x DSK buttons (DSK1/DSK2)
• Other Functions: FTB Preview Transition, Macros, S/SRC, M/E, AUX
• Power Input: DC 12V, 0.3A 4W
• POE: IEEE 802.3af
• USB Power: USB 2.0 power from computer
• Operating Temperature: 14°F - 104°F (-10°C - 40°C)
• Storage Temperature: -4°F - 140°F (-20°C - 60°C)
• Dimensions: 13.937" x 6.496" x 2.6378" (354mm x 165mm x 67mm)
• Weight: 3.3lbs (1.5kg)

  TALLY8
• Interface: DB25 Port
• Communication Carrier Frequency: 433MHz spread spectrum
• Transmission Distance: 1km in an open area, 300m away from the city
• Battery Specification: Built-in 2000mAh battery, approx 20 hours runtime
• Charging Port: Micro USB
• Charging Voltage: DC 5V
• Recharging Current: 400mA
• Generating Power: 500mW
• Host Size: 2.56" x 4.13" x 0.7" (65mm x 105mm x 17.9mm)
• Antenna Size: 6.69" (171mm)
• Weight: 1.1lbs (0.5kg)
• Indicator Light: Two-color indicator light
• Installation Method: Integrated hot shoe wrist strap
• Signal Indicator Status:
  - Blue Indicator Light: Flickering after receiving the Tally signal from the host
  - Red Indicator Light: Always on when the battery is not charging, and the power is less than 40%
  - Green Indicator Light: Always on when the battery is not charging, and the battery is less than 80%
• Charging Port: Micro USB
• Tally Size: 1.4" x 2.65" x 0.75" (36mm x 67.3mm x 18.8mm)
• Tally Weight: 0.44lbs (0.2kg)

Item Includes:

• 8x Wireless tally lights
• 1x Wireless host station
• 1x Host station power adapter
• 1x VMC12 control panel
• 1x VMC12 power adapter
• 1x USB Cable

Warranty:

• 1 Year Limited Warranty
