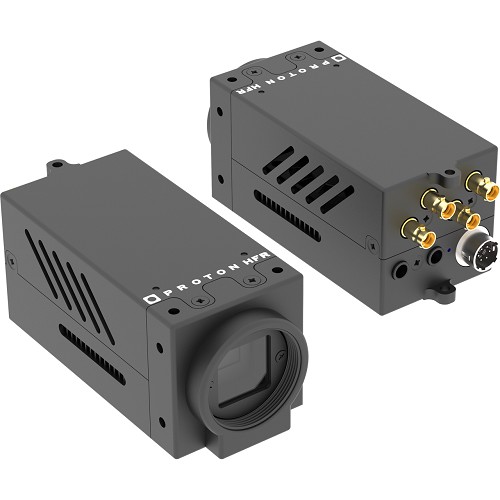

Proton PCI-HFR Compact HFR Broadcast Camera -4 x 3G-SDI- No Lens - Detachable Head

Proton PCI-HFR Compact HFR Broadcast Camera -4 x 3G-SDI- No Lens - Detachable Head PROTON-PCI-HFR

Price: $5,201.28

Product Number: PROT-PCI-HFR

Important Notice: Usually Ships within 4-10 Business Days.

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Quantity

Product Description

Proton PCI-HFR Compact HFR Broadcast Camera -4 x 3G-SDI- No Lens - Detachable Head PROTON-PCI-HFR

Experience high-speed capture like never before with the Proton Camera PCI-HFR. Designed for demanding productions, this ultra-compact slow-motion camera delivers exceptional image quality in a tiny form factor. Whether for sports, live events, or cinematic shots, the PROTON HFR ensures every moment is captured with precision and fluidity. Small size, big impact.

All video connections are HDBNC

Features:

High 12-bit dynamic 1080p
HDR compliant - HLG, PQ and S-log3
High sensitivity - Low noise, less light required
Lowest operational voltage (12V - 25V)
Lowest Power 15W
Detachable head

Specifications:

Dimensions (LxWxH): 1.42" x 1.42" x 3.35" (36mm x 36mm x 85mm)
Weight: 0.331lbs (150g)
Operation Voltage: 12V - 30V (Camera has reverse polarity protection)
Power: 16W (P60/P240)
Operational Temperature: -22°F - 140°F (-30°C - 60°C)
Lens Mount: C mount with CS mount support (Lens sold separately)
Sensor:
- 2/3" 1920x1080 4.5µm pixel
- 8.64mm x 4.86mm - 11mm diagonal
- 12-bit dynamic (72dB)
Shutter: 6µs - 1/FPS
Video Modes:
- 1-4 phases 1920x1080 SDI 1.5G/3G
- P23, P24, P25, P29, P30, P50, P59, P60
- Optional: 4K 12G SDI SQD or 2SI mode
Audio:
- 2x 3.5mm stereo microphone audio socket
- 48kHz sampling rate 24 bit
- 80dBA Signal-to-Noise-Ration

Item Includes:

1x PCI-HFR

Warranty:

6 Month Limited Warranty
