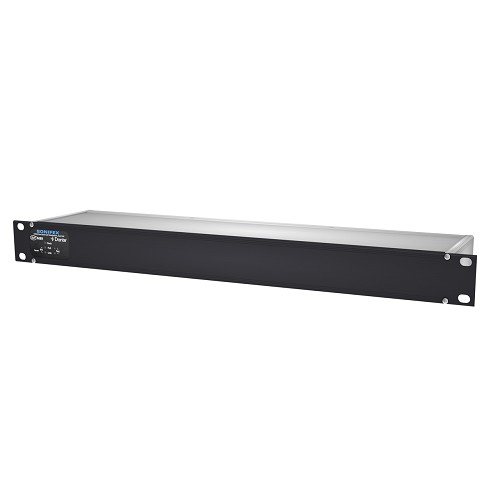

The Sonifex AVN-M8R multi-channel Dante interface is a 19" 1U rack-mount unit which distributes 8x balanced mic/line inputs to 8 channels of Dante/AES67 on the AoIP network. Each mic/line input can be controlled remotely via a web server.
The front panel includes clear LED indicators for power (PoE), network status and clock synchronisation, along with dedicated LEDs for secondary port link and PoE monitoring.
On the rear, 8x balanced Neutrik XLR connectors provide a professional mic/line interface with phantom power indicators. The unit is powered via PoE for installation savings, reliability and efficiency. Primary and secondary 1Gb RJ45 ports are offered as standard to provide full power and data redundancy, ensuring an uninterrupted, reliable solution in critical environments.
The GPIO and VGPIO can be used to trigger events over the network between devices, such as microphone muting and other events.
Fully compatible with the Dante AoIP standard, the AVN-M8R allows for flexible audio routing via Dante Controller. Additionally, Ember+ can be used as a control protocol for real-time status updates and remote control. The unit supports AES67 operation and is Dante Domain Manager compliant, offering a simple and intuitive user experience.
A built-in web server enables easy configuration of each input type on the AVN-M8R. This provides intuitive control, presenting all 8 mic/line inputs as individual channel strips, each showing its corresponding microphone or line settings. Selecting a channel strip allows you to edit and configure its parameters. A convenient "Copy Settings" function lets you duplicate settings across your choice of channels. Each channel strip shows the hardware channel number, the "Dante Input Name," and a user-defined "Local Input Name," making it easy to identify channels regardless of the naming conventions used.
With its robust feature set, flexible connectivity, and remote management capabilities, the AVN-M8R is the perfect solution for broadcasters, recording studios, and live sound applications that require high-quality professional AoIP integration from their mic or line sources.
A typical application would be in a live conference, meeting, or concert, where multiple microphones and line-level sources are deployed around the venue to capture speakers, performers, or ambient sound. Its remote control capability allows easy adjustment of gain and phantom power, even when the unit is discreetly hidden.
Features:
Product Features- 8x Mic/Line Inputs Using Neutrik Connectors
- Phantom Power with Indicators for Each Mic Input
- Remote Individual Input Control; such as, Mic Gain and Line-up Control Via the Web Server
- 2x RJ45 Connector (1Gb/s Ethernet Port) for PoE Power and Network Redundancy
- PoE, Link and Clock LED Status Indicators
- Configuration Using Dante Controller & Dante Domain Manager Compliant
- AES67 Compatible
- 1U 19" Rack-Mount Form Factor
- Aluminium Construction
Web Server Features - Real-Time System Information and Status Monitoring
- Firmware Update Process
- Network Configuration
- User Defined Device Identification
- Password Protection
- GPIO/VGPIO Routing
- SNMP Configuration
- Save and Load Configuration for Quick Deployment
- Export System Logs for Diagnostics and Support
Adjustable Mic/Line Parameters - Mic Phantom Power
- Preamp Mic Gain (16dB - 76dB) in 3dB Increments
- 5 Levels of Input Line-up (+15dBu - +24dBu = 0dBFS)
- Mic or Line High Pass Filter
- Mic or Line High Pass Corner Frequency
- Mic or Line Signal Presence Threshold (dB)
- Mic or Line Signal Presence Timeout
- Global Status LED's Enable/Disable (Dark Mode)
Specifications:
Network and AoIP- AoIP Standard: Dante
- Number of Channels: 8 transmit
- Number of Streams: 8 transmit
- Sample Rate: 44.1kHz, 48kHz, 88.2kHz or 96kHz
- Format:Linear PCM, 16, 24 or 32 bit
- AES67 Support: Yes
- Connectivity: 2x RJ45
- Speed: 1Gbps or 100Mbps
- Network Modes: Switched or redundant
- Dante Domain Manager Ready: Yes
Mic/Line Inputs - Input Impedance (Mic Mode): 2.5k? electronically balanced
- Input Impedance (Line Mode): >10k? electronically balanced
- Preamp Gain (Mic Mode): User selectable 16dB - 76dB in 3dB steps (Ref. +18dBu = 0dBFS)
- 0dBFS Line-up (Mic Mode): -58dBu @ Max preamp gain, +2dBu @ Min preamp gain
- 0dBFS Line-up (Line Mode): User selectable +15dBu/+18dBu/+20dBu/+22dBu/+24dBu = 0dBFS
- Frequency Response (Mic Mode): +0/-0.2dB 20Hz - 42kHz Ref 40dB gain @ 1kHz
- Frequency Response (Line Mode): +0/-0.2dB 20Hz - 42kHz Ref 0dBu @ 1kHz
- THD+N (Mic Mode): <-90dBFS, -52dBu, 20Hz - 20kHz, 40dB gain, 20kHz BW
- THD+N (Line Mode): <-100dBFS, -6dBu, 20Hz - 20kHz, 20kHz BW (ref. +24dBu = 0dBFS)
- Equivalent Input Noise (Mic Mode): <-143dBFS (-125dBu) Ref. 76dB preamp gain, Rs = 200?
- Noise (Line Mode): <-100dBFS, 20kHz BW, Rs = 200?
- C.M.R.R.: >60dB @ 1kHz
- Phantom Power (Mic Mode): +48V
- High Pass Filter: 12dB/octave, user selectable frequency
Balanced Line Input XLR Pinout - Pin 1: Chassis Ground/Screen
- Pin 2: Input Phase/Positive
- Pin 3: Input Non-Phase/Negative
PoE Power - Standard: 802.3af
- Class: 0
- PD Power Range: 0.44W - 12.94W
- Typical PSE Power Usage: 10W
- Max PSE Power Usage: 15.4W
Physical - Dimensions (Unboxed): 19" x 4.3" x 1.7" (48cm x 11cm x 4.3cm)
- Dimensions (Boxed): 23.4" x 8.9" x 1.7" (59.9cm x 22.5cm x 7cm)
- Weight:
- Net: 2.24lbs (1.02kg)
- Gross: 3.11lbs (1.41kg)
Item Includes:
- 1x AVN-M8R 19" 1U 8-Channel Dante Interface with 8x Balanced Mic/Line Inputs and Dual PoE Support
