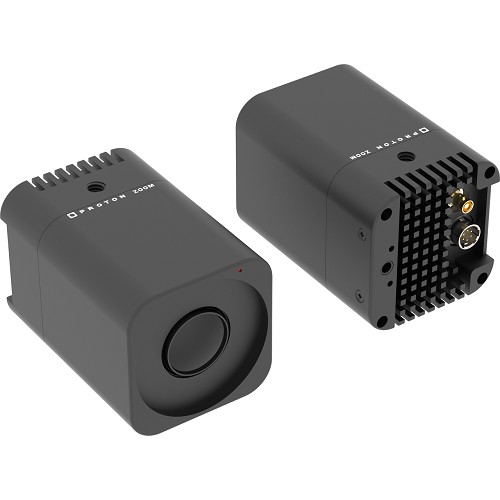

Proton PCI-ZOOM Compact POV Camera with 2.2x Zoom - Integrated Tally Light - HDR Compliant PROTON-PCI-ZOOM

The Proton Camera PCI-ZOOM brings powerful zoom capabilities to the world of ultra-compact POV cameras.

Built on the proven PROTON CAM platform, it delivers exceptional image quality while offering the flexibility to get closer to the action without compromising on size or performance. Perfect for sports, live broadcasts, and creative productions, PROTON ZOOM ensures every detail is within reach.

Features:

• Smallest Broadcast camera with zoom on the market
• From 55° to 115° ultra wide angle, 2.2x zoom
• High 12-bit dynamic 1080p
• 2-stops more on mini cameras
• HDR compliant, HLG, PQ and S-log3
• High sensitivity Low noise, less light required
• Lowest operational voltage 4.5V - 25V
• Lowest Power - 3.5W
• Tally light integrated

Specifications:

• Dimensions (LxWxH): 1.97" x 1.97" x 2.87" (50mm x 50mm x 73mm)
• Weight: 0.516lbs (234g)
• Operation Voltage: 5 V - 25V (Camera has reverse polarity protection)
• Power: 3.8W (P60 , cold camera)
• Operational Temperature: -22°F - 140°F (-30°C - 60°C)
• Lens/FOV:
  - Integrated motor lens with zoom (2.2x), focus and iris control
  - 55° - 115° horizontal viewing angle
  - F1.5 @ 115° wide angle
  - F2.4 @ 55° narrow angle
• Sensor:
  - 1/1.8" 1920x1080 4µm pixel
  - 7.68mm x 4.32mm - 8.8mm diagonal
  - 12-bit dynamic (72dB)
• ISO Base Sensitivity:
  - 75 - 2400
  - 200 - 6400 (low light mode)
• Shutter: 6µs, 1/FPS
• Audio:
  - 3.5mm stereo microphone audio socket
  - 48kHz sampling rate 24 bit
  - 80dBA Signal-to-Noise-Ration
• Video Modes: 1920x1080 SDI 1.5G/3G P23, P24, P25, P29, P30, P50, P59, P60, 150, 159, 160

Item Includes:

• 1x PROTON ZOOM Camera

Warranty:

• 6 Month Limited Warranty
