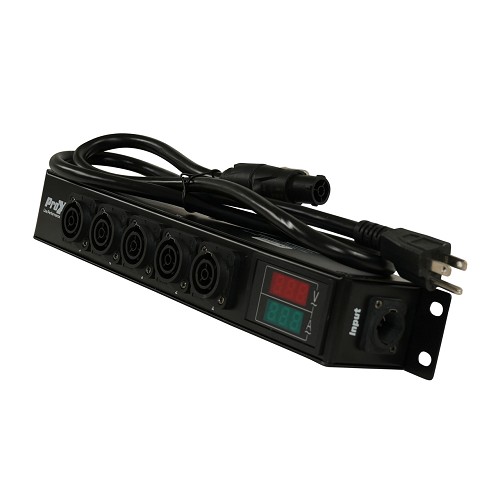

When every amplifier, lighting fixture, video monitor, and signal processor on your rig depends on clean, stable AC power, the ProX DANA delivers exactly that in one compact, purpose-built chassis. This is a professional 6-outlet True1 power distribution center rated at a genuine 20A, built for working audio engineers, lighting designers, video crews, broadcast teams, and live event production professionals who cannot afford guesswork at the power panel. A single locking REAN® by NEUTRIK® powerCON TRUE1 style input receives your upstream feed and distributes it cleanly across six True1 outputs, while a real-time LED V&A meter continuously displays the voltage and amperage passing through the unit. The result is a single, disciplined power hub that eliminates cable chaos, keeps you informed from the moment power enters your rig, and brings locking-connector reliability to every point of use.
Six True1 Outputs
The ProX DANA gives you six independent connection points ready to serve amplifiers, lighting fixtures, video monitors, signal processors, wireless systems, stage boxes, and any other True1-compatible device in your inventory. The single-in, six-out topology collapses a web of individual feeder runs into one clean, organized distribution point, dramatically reducing the number of cable runs required between your upstream distro and your gear. Whether you are spreading power across a monitor world rig, a lighting dimmer rack, a video production village, or a mobile DJ setup, the ProX DANA creates professional order where daisy chains and unlocked connections used to be.
Locking Input
REAN® by NEUTRIK® powerCON TRUE1 Input means power enters the ProX DANA through a genuine REAN® by NEUTRIK® powerCON TRUE1 style locking connector. The TRUE1 format locks positively into place and releases only with a deliberate twist-and-pull action, so an accidental snag on a feeder cable during a quick changeover or a hectic load-in will not take down your show. Pairing the ProX DANA with a standard powerCON TRUE1 feeder cable from your upstream distro, generator, or venue panel gives you an instantly professional, locking AC break-out station at the exact point where show power enters your rig - replacing a fragile or unlocked plug with a connector that only lets go when you tell it to.
Real-Time LED V&A Meter
Mounted prominently on the face of the ProX DANA, the Real-Time LED V&A Meter provides continuous, at-a-glance visibility into both incoming line voltage and total current draw across the entire unit. The voltage display lets you verify immediately whether the venue circuit is delivering full, stable power before a single piece of gear turns on. The amperage display shows you exactly how much current your connected load is consuming in real time. This metering eliminates guesswork at load-in, allows you to balance loads intelligently across circuits, document power conditions for production managers, and diagnose intermittent faults that would otherwise be invisible until gear goes offline mid-show. For professionals who have ever lost a show to a brownout or an undetected overload, the built-in V&A meter is the diagnostic upgrade that belongs on every professional rig.
True 20A Rating
The ProX DANA is engineered to match the capacity of standard North American 20A house circuits and professional tour distribution systems, allowing seamless integration into existing power plans without requiring electricians to recalculate loads or rebalance panels at the venue. This is a genuine 20A rating designed for sustained, real-world current draw - not the inflated peak figures printed on consumer power strips. From load-in through the final encore, the ProX DANA delivers predictable, professional power performance at every outlet on the panel.
WARNING: DO NOT EXCEED 20 AMPS. IP20, INDOOR USE ONLY. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.
Features:
- Single-In, Six-Out True1 Power Distribution - 1x Power IN side-mounted REAN(R) by NEUTRIK(R) PowerX RCAC3M-X-000 male locking connector feeds 6x Power OUT via REAN(R) by NEUTRIK(R) PowerX RCAC3F-X-000 female locking connectors, 5 on top and 1 on the side, for flexible cable routing in any rig orientation
- Powers up to 6 fixtures simultaneously from a single power source, eliminating multiple feeder runs and simplifying your power plan at load-in
- Pass-through power drop box to continue full power downstream for daisy-chained units, making it easy to scale across truss and stage systems with a Linkable Multi-Unit Design
- 20A Max Load at 100V to 240V AC, 50/60Hz - a genuine sustained rating compatible with standard North American circuits and international touring voltage ranges
- Real-time LED voltage and current (Amp) display for live power monitoring and overload prevention - know your draw before it becomes a problem
- Fast and easy twist-lock latching system for quick, secure connections at every output - once locked, they stay locked through the most demanding live events
- Includes 12 AWG Power Cable featuring a NEMA 5-15P Edison male plug on one end and a REAN(R) by NEUTRIK(R) PowerX RCAC3F-X-000 female locking connector on the other, supporting 20A capacity for full-rated delivery right out of the box
- 12 AWG pure copper conductors for maximum current capacity and minimal power loss - premium wire gauge that professionals trust for sustained high-load operation
- UL and cUL Tested Components meeting professional safety standards for peace of mind on every gig
- All-metal chassis with rugged steel housing built for the rigors of touring and live event demands - engineered to take a hit and keep distributing power
- Powder-coated TPE housing resists wear, impact, and live event conditions for long-term durability in the field
- 1U rack-mountable can be installed inside racks for a clean, permanent installation (screws not included)
- M10 threaded rear mount for truss clamps and rigging hardware, plus 4 Mounting Holes for wall or case mounting - versatile installation for any production setup
- Slim, compact design fits easily into truss rigs and tight mobile DJ setups without sacrificing output capacity
- Clearly numbered outlets for fast, error-free setup and cable identification - no guesswork during a rushed changeover
- Reduces cable clutter by consolidating five power runs into one clean distribution point, keeping your rig organized and stage-ready
- Indoor optimized for safe, reliable performance at 20A or below
- Versatile applications for DJ rigs, stage lighting, speakers, AV systems, and more; one solution for your entire power distribution needs
- Designed by ProX for professional live production, touring, and event environments, backed by 40 years of industry expertise
Specifications:
- Exterior Dimensions (LxWxH): 14.50" x 2.00" x 2.50"
- Weight: 2.20lbs
- Shipping Dimensions (LxWxH): 3.00" x 4.00" x 15.00"
- Shipping Weight: 3.00lbs
Warranty:
- Limited Lifetime Warranty
