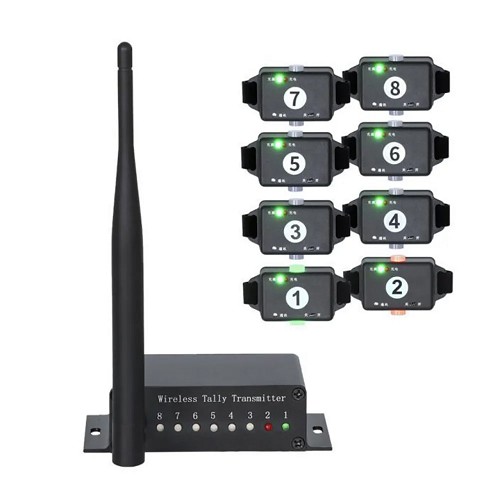

PTZCam 8-Light Wireless Tally System with Host Station PTZC-TALLY8

The PTZCam PTZC-TALLY8 lets you easily add 8x wireless tally lights to any camera and control them in conjunction with the PTZCam N8 switcher or Switchblade VMC12 control panel.

Features:

• Wireless Host Unit and 8x Tally Lights
• Works with PTZCam Switch N8 and Switchblade VMC12 controller
• Connect Tally Lights up to 984ft Away
• 200ms Response Time
• Built-In Batteries in Host & Lights
• Low Transmission Power
• Lights Feature Two Colors (Green and Red)

Specifications:

• Interface: DB25 Port
• Communication Carrier Frequency: 433MHz spread spectrum
• Transmission Distance: 1km in an open area, 300m away from the city
• Battery Specification: Built-in 2000mAh battery, approx 20 hours runtime
• Charging Port: Micro USB
• Charging Voltage: DC 5V
• Recharging Current: 400mA
• Generating Power: 500mW
• Host Size: 2.56" x 4.13" x 0.7" (65mm x 105mm x 17.9mm)
• Antenna Size: 6.69" (171mm)
• Weight: 1.1lbs (0.5kg)
• Indicator Light: Two-color indicator light
• Installation Method: Integrated hot shoe wrist strap
• Signal Indicator Status:
  - Blue Indicator Light: Flickering after receiving the Tally signal from the host
  - Red Indicator Light: Always on when the battery is not charging, and the power is less than 40%
  - Green Indicator Light: Always on when the battery is not charging, and the battery is less than 80%
• Charging Port: Micro USB
• Tally Size: 1.4" x 2.65" x 0.75" (36mm x 67.3mm x 18.8mm)
• Tally Weight: 0.44lbs (0.2kg)

Item Includes:

• 8x Wireless tally lights
• 1x Wireless host station
• 1x Host station power adapter

Warranty:

• 1 Year Limited Warranty
