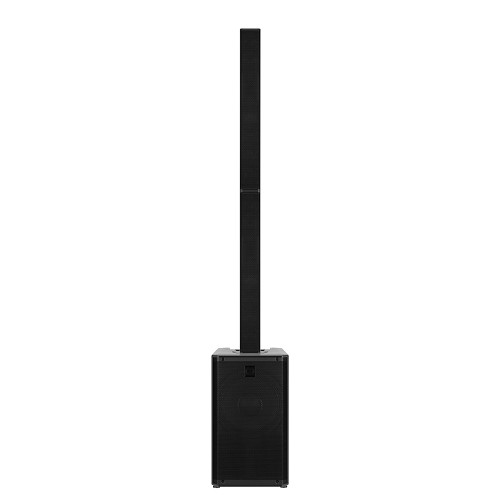

The RCF EVOX J11 is an active, three-way portable column system designed for maximum clarity and power in a compact format. Neutral and minimal, EVOX J11 stays out of the spotlight and simply delivers. Whether used in corporate spaces or at a party, the sound is clean, with high dynamics, vocal clarity, and a fast, controlled low end for both sitting and standing audience. Free-standing elegance, quick setup, and power at the highest level.
Up to 2.5x More Power
The new generation 3500W Class-D two-channel amplifier delivers up to 2.5x more power than the previous architecture, delivering extremely high sound pressure levels with ultra-fast attack, realistic transient response, and minimal thermal buildup.
Highly energy-efficient, the J11 requires no cooling fan. The amplifier is mounted on a solid aluminum heat exchanger at the rear of the unit and has no moving parts. Mechanically coupled to the internal frame, the amplifier is securely braced within the cabinet for long-term reliability.
The input stage features a new low-distortion design with an advanced safety limiter that preserves the input signal's character at any level. EVOX J11 amplifier is designed in accordance with EN 62368-1 for maximum safety and feature a switch-mode power supply (SMPS) that combines high efficiency with minimal weight.
True 3-Way Design
Neodymium compression driver (1.75" voice coil, Kapton dome) with a True Resistive Waveguide (TRW) for a resonance-free load and constant, 120° x 40° coverage. The forward radiation of the array of 12x 3" neodymium drivers, combined with the centered waveguide, delivers a balanced point-source response. 12" RCF transducer provides deep, controlled low frequencies, ideal for bass-heavy music and high-energy performances.
Fast, Flexible Deployment
Available in black or white, EVOX J11 integrates all required connections for fast setup. Despite its power and size, its sleek design remains unobtrusive and neutral, blending into any environment. The included padded carrying bag for the two-piece column array makes moving the system effortless. For increased height, J11 supports only the single-half-pole, full-column array configuration.
SUB AX ACE Presets for EVOX J
When extended, impactful low-end is required, simply add an RCF subwoofer. ACE-enabled models, starting from the SUB AX Series, include dedicated integration presets for EVOX systems, ensuring perfect tuning at the touch of a button. RCF's Advanced Crossover Engine (ACE) precisely adjusts time delay and phase to optimize power and impact of the system.
Ready for the Road
Every EVOX system includes a padded column transport bag for essential protection. To complete your setup, add an aluminum pole extension for quick, flexible height adjustments (available in half- and full-height options). For enhanced transport and storage, choose the optional protective subwoofer cover or the trolley-style cover with wheels for easy mobility.
Features:
- 132dB Max SPL
- 3500W Class-D Amplifier - Built-In DSP
- 1.75" Neo Compression Driver - 120° x 40° True Resistive Waveguide
- 12x 3" Full-Range Neo Transducers
- 12" High-Power Woofer
- Enhanced Coverage And Clarity
- Composite Cabinet
- Sleek, Road-Ready Design
- Top Speaker Padded Carrying Bag Included
- J11 Sub: 45.42lbs (20.6kg)
- J11 Top: 18.52lbs (8.4kg)
Specifications:
Acoustics- Frequency Response: 37Hz - 20kHz
- Max SPL @ 1m: 132dB
- Horizontal Coverage Angle: 120°
- Vertical Coverage Angle: 40°
Transducers - Compression Driver: 1" x 0.75" neo, 1.75" v.c
- Fullrange: 12" x 3.0" neo, 1.0" v.c
- Woofer: 1" x 12", 2.5" v.c
Input/Output - Input Signal: Bal/Unbal
- Input Connectors: Combo XLR/Jack
- Output Connectors: XLR
- Input Sensitivity: +4dBu
Processor - Crossover Frequencies: 160Hz/1800Hz
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Controls: Volume, Presets: LINEAR/LIVE, CLUB, VOICE
Power - Total Power: 3500W Peak
- High Frequencies: 1500W Peak
- Low Frequencies: 2000W Peak
- Cooling: Convection
- Connections: Powercon TRUE1 TOP IN/OUT
Standard Compliance - Safety Agency: CE compliant
Physical - Cabinet/Case Material: PP Composite
- Handles: 1 Top
- Pole Mount/Cap: Quick-fit socket
- Grille: Steel
- Color: Black
- Dimensions (LxWxH): 18.23" x 13.78" x 81.89" (463mm x 350mm x 2080mm)
- Shipping Dimensions (LxWxH): 22.87" x 17.76" x 26.61" (581mm x 451mm x 676mm)
- Weight: 63.93lbs (29kg)
- Shipping Weight: 77.16lbs (35kg)
Item Includes:
- 1x EVOX J11 Subwoofer
- 1x Power Cable
- 2x Satellite speaker
- 1x Padded speaker bag
