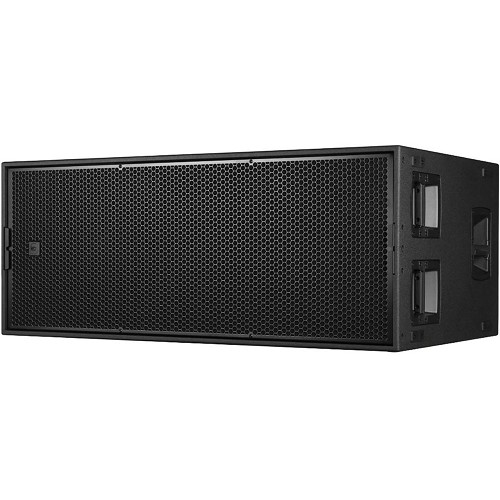

The RCF SUB 9029-AS is a high-performance dual 19" active subwoofer delivering up to 142dB Max SPL, powered by a robust 8000W Class-D amplifier. Designed for rigorous touring, the SUB 9029-AS features a tour-ready, weatherproof cabinet with a durable Polyurea finish and a detachable front cart for easy transport. Control is precise with RDNet network management, offering adjustable EQ, delay, cardioid options, and tailored crossover presets for RCF speakers. Innovative contactless configuration via RDTap allows seamless setup even when the unit is unpowered, ensuring perfect integration every time. Despite its small footprint and lightweight cabinet, the SUB 9029-AS produces powerful yet articulate bass, remaining true to even the most subtle low-frequency variations.
Advanced Precision Transducers
The SUB 9000 Series subwoofers incorporate the latest transducer technology from our labs. Employing lightweight aluminum core coils, high-damping cellulose cone material, composite spiders and a 4-layer inside-outside voice coil, the ultra-long excursion moving mass gains high power with fast acceleration. Despite their small and lightweight footprints, SUB 9000 Series subwoofers produce powerful yet articulate bass, remaining true to even the most subtle low-frequency variations.
High-Class Neodymium
Neodymium, a rare-earth material, enhances efficiency, power handling, and weight reduction. Using a 20% stronger magnetic field than typical neodymium grades, this new design enables precise control and higher force.
Tour Grade Solution
Designed for rigorous touring, SUB 9000 Series subwoofers feature tour-ready, weatherproof plywood construction with a durable polyurea finish. The included magnetic rain cover protects the connection panel from rain and dust, while rugged powerCON TRUE1 TOP AC connectors ensure reliable power delivery in any environmental condition. Subs are stackable and lightweight, have ergonomic handles with rubber grips, and are designed for easy set-up and tear-down. M20 pole mounts on the top and side of the cabinet offer flexible top speaker placement. Connections for a detachable front cart are included, enabling easy transport on wheels (cart sold separately).
Contactless Audio System Configuration
RDTap enables contactless communication, offering setup management and parameter updates, even when the unit is unpowered. By tapping the RDTap logo at the back panel with a smartphone running RDTap, the app transfers to the unit every aspect of the defined setup, including preset configurations, equalization, mid-low compensation for line arrays, and precise delay and time alignment settings. Or read the status of the speaker. This is especially convenient when upgrading your subwoofers and giving your old main system a new life, with the assistance of presets, EQs, delays, and management via RDNet.
Features:
- 142dB Max SPL
- 8000W Class-D Amplification
- RDTap Contactless Configuration
- I/O Panel Rain Cover Included
- RDNet Networked Control
- BMC, EQ, DLY, Cardioid
- ACE Crossover Presets for RCF Speakers
- 2x 19" High-Excursion Precision Transducers
- Detachable Front Cart (sold separately)
- powerCON TRUE1 TOP AC Connector
Specifications:
Acoustics- Frequency Response: 25Hz - 200Hz
- Max SPL @ 1m: 142dB
- Woofer: 2x 19" neo, 4.0" v.c
Input/Output - Input Signal: Bal/Unbal
- Input Connectors: XLR, RDNet Ethercon
- Output Connectors: XLR, RDNet Ethercon
- Input Sensitivity: -2dBu/+4dBu
Processor - Protections: Thermal
- Limiter: Soft Limiter
- Controls: MUTE, VOL, PRESETS, RDTAP
- RDNet: Onboard
Power - Total Power: 8000W Peak
- Cooling: Convection/Forced
- Connections: powerCON TRUE1 TOP IN/OUT
Physical - Cabinet/Case Material: Plywood
- Hardware: 2x M20 pole mount accessories
- Handles: 3x handles per side
- Pole Mount/Cap: M20 thread
- Grille: Steel with clothing
- Color: Black
- Safety Agency: CE compliant
- Dimensions (HxWxD): 20.98" x 51.57" x 30.91" (533mm x 1310mm x 785mm)
- Weight: 205.03lbs (93kg)
- Package Dimensions (HxWxD): 22.44" x 32.68" x 53.15" (570mm x 830mm x 1350mm)
- Package Weight: 216.05lbs (98kg)
