Simply45 PSK10G ProSeries Pass Through 10G STP Starter Termination Kit - Boxed PSK10G

Simply45 S45-PSK10G is a ProSeries Pass-Through 10G STP Starter Kit. This starter kit includes the S45-1755P ProSeries 10G shielded external ground with pass-through RJ45 Cap45® & Bar45®, S45-801 Premium 5" flush cutter tool, S45-B003 strain reliefs for the Simply45® shielded external ground for pass-Through & standard RJ45, S45-C101 Simply45® ProSeries All-In-One RJ45 crimp tool, and the S45-S01YL yellow adjustable LAN cable stripper for shielded & unshielded Cat7a/6a/6/5e.

Features:

• S45-1755P Pass-Through RJ45 Modular Plugs are by far the highest performing, easiest to use, and most cost-effective way to professionally terminate 10G Shielded and other large diameter shielded LAN cable
• S45-C101 Crimper Crimps Both Pass-Through and Standard WE/SS Shielded RJ45 Modular Plugs
• S45-801 Premium 5" Flush Cutter Tool Professionally Trim LAN Cable Wires
• S45-S01YL Adjustable LAN Cable Stripper for Shielded & Unshielded Cat7a/6a/6/5e Works great for Plenum, LSZH, PE & PVC cable jackets)
• S45-B003 Simply45® Snagless Strain Reliefs 0.33" (8.5mm) snagless strain relief for use with larger diameter shielded LAN cables

Specifications:

• General
• Type: RJ45 Male
• Quantity: 50
• Contact Plating: 50 µ Gold
• 100 µ Nickel
• Contact Material: Bronze
• Shielded: Yes
• Conductor Diameter: 0" / 1.2 mm
• Contact Resistance: 20 milliohms

  Compatibility
• Supported Cable Diameter: 0.3" / 8 mm
• Wire Gauge Supported: 23 to 23 AWG
• Cable Types Supported: Solid, Stranded
• Networking Type: Cat 6a, Cat 7, Cat 7a

  Physical
• Plug Material: Polycarbonate
• Compliance: cUL, RoHS, FCC
• Flame Resistance Rating: UL94V-0
• Mating Cycles: 2000
• Operating Temperature: -40 to 158°F (-40 to 70°C)
• Shipping Weight: 0.475 lb
• Shipping Dimensions (LxWxH): 3.95 x 3.7 x 3.25"

  All-In-One RJ45 Crimp Tool
• Handle Opening: 4.25" (10.8 cm)
• Dimensions: 11.6 x 4.5 x 1.2" (29.5 x 11.5 x 3 cm)
• Shipping Weight: 1.11 lb
• Shipping Dimensions (LxWxH): 11.6 x 4.5 x 1.4"

  Premium Flush Cutter Tool
• Dimensions: 8.1 x 3 x 0.9" (20.5 x 7.5 x 2.2 cm)
• Weight: 3.3 oz / 93 g

  Adjustable LAN Cable Stripper For Shielded & Unshielded Cat7a/6a/6/5e (Yellow)
• Dimensions: 8.7 x 4.7 x 1.3" (22.1 x 12 x 3.2 cm)
• Weight: 0.21 lb / 97 g
• Shipping Weight: 0.21 lb
• Shipping Dimensions (LxWxH): 8.65 x 4.65 x 1.2"

  Shielded External Ground Snagless Strain Reliefs (100-Pack)
• Type: Strain Relief
• Quantity: 100

  Compatibility
• Supported Cable Diameter: 0.3" (8.5 mm)

  Physical
• Plug Material: Polycarbonate
• Shipping Weight: 0.32 lb
• Shipping Dimensions (LxWxH): 8.95 x 5.85 x 2.4"

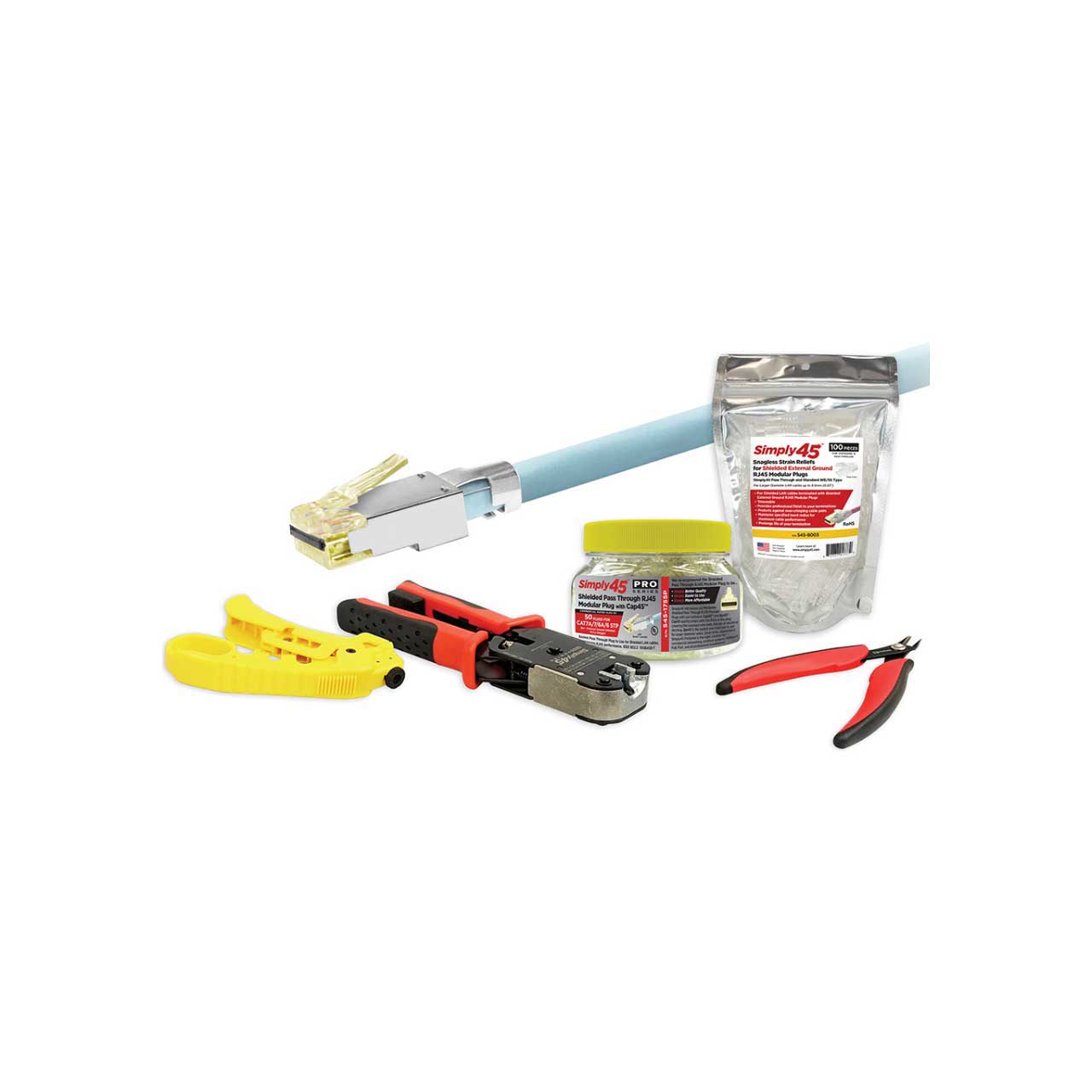

Item Includes:

• 1x S45-1755P - RJ45 Modular Plug - Shielded - 10G
• 1x S45-C101 - Heavy Duty RJ45 Crimp Tool
• 1x S45-801 - Flush Cutter
• 1x S45-S01YL - Adjustable UTP Stripper
• 1x S45-B003 - Strain Reliefs
