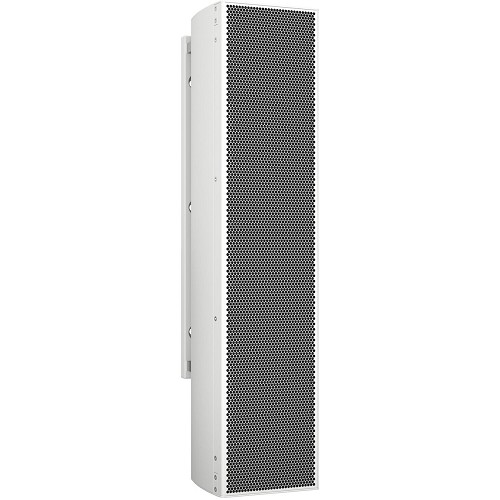

Tannoy QFLEX 16-WP QFLEX Digitally Steerable Powered Column Array Loudspeaker with 16x Independently Controlled Drivers QFLEX 16-WP QFLEX 16-WP

The Tannoy QFLEX 16 WP is a powered, digitally steerable multi-channel, column array loudspeaker designed as a complete solution for installed applications with challenging acoustics, such as houses of worship, transportation hubs, convention centres, conference facilities, shopping malls, performing arts centres and museums. The heart of the system is our proprietary VNET loudspeaker networking platform, which comprises both software and hardware DSP components that produce extremely-high speech intelligibility, impactful music reinforcement, and complete loudspeaker system diagnostics and monitoring.While many competing steerable arrays allow only a modest steering range across specific frequencies, the QFLEX 16 has a class-leading ±70° steering control, plus 16 channels of integrated DSP and amplification for consistent and highly intelligible full-range voice and music applications.

The first digitally steerable column array loudspeaker of its kind, QFLEX 16's revolutionary BeamEngine technology steers the the full-range sound away from surfaces that cause reflections. The intuitive BeamEngine GUI allows the designer to specify target areas. Rather than only providing a limited palette of opening and steering angles, the BeamEngine GUI generates a steering algorithm that is tailored for that specific area. The resulting asymmetrical pattern delivers similar sound pressure levels (SPL) in both the near and far field for superb coverage and intelligibility - all in a very aestheticallypleasing package.

The QFLEX 16 column array loudspeaker comprises eight 3" low frequency drivers and eight 1" high frequency drivers, each with their own individual 100W Class D amplifier and integrated cutting edge DSP. Presented in a high density array with proportional frequency spacing, QFLEX 16's drivers provide digitally-steerable coverage for distances up to 82ft (25m) - with no aliasing artefacts. A robust internal DSP engine works seamlessly with the proprietary VNET and BeamEngine software, both of which are available for free download here.

Features:

• Digitally steerable column array speaker system provides extremely high intelligible speech and music reinforcement
• Class leading ±70° steering control with 16 channels of integrated DSP and amplification
• Intuitive BeamEngine GUI for asymmetric pattern creation and even near and far field SPL coverage
• Ideal for the most challenging acoustic environments due to extended frequency range steering control
• 8x 3" low frequency drivers and 8x 1" high frequency drivers with individual 100 Watt Class D amplifiers and integrated cutting edge DSP
• For installation applications with coverage distances up to 82ft (25m)
• High density array of transducers with proportional frequency spacing prevents aliasing artefacts
• Fully integrated amplified speaker system connects to other Tannoy VNET enabled products.
• Accessory options for constant voltage systems, Audinate Dante digital audio networks, Ethernet control, and AES3 break in interface
• AES3 input and link connections on RJ45 connectors with internal sample rate conversion up to 96kHz
• Fully PA/VA compliant
• Architecturally styled aluminium enclosure with a semi matt white painted finish
• Corrosion resistant aluminium perforated grille
• Included custom brackets allow quick and accurate installation

Specifications:

• Speaker Type: Active Column Array
• Configuration: 2-Way
• Enclosure Type: Sealed
• Total Output Power: 1600W RMS
• Amplifier Power Rating: 16 x 100W
• Amplifier Class: Class-D
• LF Driver: 8x 3" (7.62cm) Woofer
• HF Driver: 8x 1" (25.4mm) Tweeter
• Frequency Range/Response: 130Hz - 20kHz (-10dB)
• Maximum SPL: 94dB
• Coverage Angle: 120° H x 100° V
• EQ & Filters: No
• Alignment Delay: Yes: Delay Time/Distance is Unspecified
• Digital Signal Processing: 24-Bit DSP, User Settings, Venue Settings (Adjustable via Optional Software)
• Audio I/O: 2x Block 6-pin Line Input
• Network I/O: 2x RJ45 (Link)
• AC Input Power: 100V - 230VAC, 50/60Hz
• Current Consumption:
  - 100VAC: 1.8A
  - 230VAC: 1.14A
• Power Consumption: 170W (Max)
• Color: White
• Mounting: Bracket Point
• Handles: No
• Construction Material: Aluminum, Aluminum Grille
• Environmental Resistance: No
• Dimensions: 29.3" x 6.7" x 5.9" (74.4cm x 17cm x 15cm)
• Weight: 31.5lbs (14.3kg)

Item Includes:

• 1x Tannoy QFLEX 16 Digitally Steerable Powered Column Array Loudspeaker
• 3x Euroblock Connectors
• 1x Mounting Bracket
