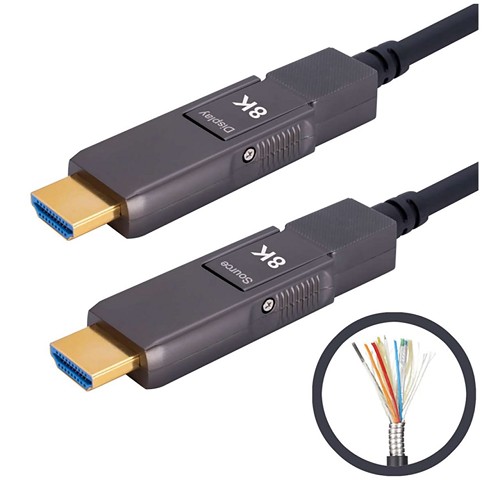

OMC Tech Armored Detachable 8K60 HDMI 2.1 AOC Cable - 98.4 Foot AOCH-4130

The OMC Tech AOCH-4130 is an armored detachable HDMI active hybrid cable that is the most competitive long reach HDMI interconnection solution on the market. It supports HDMI Data Rate 12Gbps per channel, total 48Gbps with light weight, flexible and ultra-small long-term bending radius (58mm) hybrid cable. With an advanced optical engine embedded, this HDMI Hybrid Cable supports up to 100m maximum length, plug and play.

Detachable design is good for installation with 2x HDMI D/A Adapters and no external power required. Engineered for environments where standard cables fail, this AOC combines high-speed fiber optic technology with a stainless-steel armored jacket for maximum durability.

Applications:
• Security & Surveillance Systems
• Broadcast Station & Mobile Studio
• Medical & Healthcare site
• Industrial & Manufacturing environment

Features:

• Comply with HDMI 2.1 standard: EDID, CEC, HDCP2.3, HDR, HEC, ARC, etc
• Support 7680 x 4320 (8K) @ 60Hz 4:4:4 resolutions with bandwidth up to 48Gbps
• Supports up to eight PCM channels, DTS-HD Master & Dolby Digital True HD surround sound audio
• No loss of signal - delivering crystal clear digital images instantly;
• Zero Latency - No compression at all, only direct conversion of electronic to fiber signal.
• Cable OD: 5.8mm, 4 fiber (High speed) + 7 copper wire (Low speed and Power)
• OM3 fiber technology greatly reduces EMI/RFI emissions
• Triple-shielding further protects against interference for optimal signal quality
• Has Source & Display clearly printed on the connector for easy identification
• Has high pulling strength and compression load
• Plug and Play, no external power required
• Pluggable gender for easy installation with 2x HDMI D/A Adapters
• 200CU stainless steel construction to provide "Armored" reliability

Specifications:

• HDCP & DDC: HDCP 2.3 Fully Support bi-directional EDID and HDCP communication
• Video Bandwidth: 12Gbps x 4 Channel (Max) + Clock
• Supported Resolution & Distance: 4K 50/60/100/120 and 8K 50/60
• O/E Converter: 4 channel 850nm VCSEL array/4 channel GaAs PD array
• Connector Type: HDMI Type D
• Cable Type: Armored Hybrid Type with OM3 Fiber and Copper Wire
• Cable Length: 98.4ft (30m)
• Cable Outer Diameter: 5.8mm
• Jacket Outer Material: TPU
• Cable Weight: 3.7lbs (1.7kg)
• Cable Color: Black
• Differential Input: 100? (typical)
• Power Consumption: 250mW (max)
• Power Supply: Non external power required

Item Includes:

• 1x Armored Detachable 8K60 HDMI 2.1 AOC Cable - 98.4 Foot

Warranty:

• 1 Year Limited Warranty
