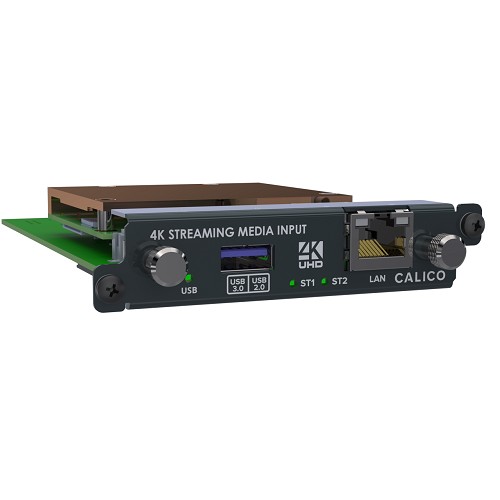

tvONE H.264 & H.265 Low-Latency 4K UHD USB 3.0 Streaming Media Input Module for CALICO PRO C7-PRO-MEDIA

The tvONE C7-PRO-MEDIA 4K Streaming & Media input module for CALICO PRO is a dual low latency H.264 & H.265 streaming decoder. It has IP source labeling and playback of video clips and stills from the on-board 128GB HDD.

Features:

• Combine streaming, file playback and still images for each video channel using playlists - Up to 20x playlists can be used per system
• 2 video channels 4K30 & HD or dual HD media playback 2160p (4096x2160) 30Hz
• Decodes IP streams up to 4K
• IP Stream Labelling with on screen position adjustment - Separate, and in addition to CALICO labelling function
• High resolution still image support up to 4320p (7680x4320) stored, scaled to 2160p for playback
• Hardware video engine handles smooth playback and scaling
• USB 3.0 port for file playback and content transfer to internal SSD
• 128GB internal SSD storage for content - Video and still images
• Two operational modes:
  - 2-channel 4K + 2K mode for file playback and streaming
  - 2-channel 4k + 4k synchronized playback mode (8x HD file playback)

Specifications:

Video Inputs
• RJ45 (VoIP - video over IP):
  - 1x (up to 40 decoders can be stored in the system)
  - 2x simultaneous streams (can be viewed live)

  IP Processing
• Chroma Sub-Sampling: 4:2:0 , 4:2:2
• Video Decoding: H.264 (Main, High), MPEG4, H.265/HEVC (Main) 8-bit
• Bit Rates: Up to 50Mbit H264, 25Mbps H265 per stream (dual stream)
• Unicast Streams: RTSP, RTMP, HTTP, MPEG-TS
• Multicast Streams: RTSP, MPEG-TS

  Media Handling
• External: 1x USB 3.0 Interface
• Supported Devices: Flash file systems FAT, FAT32, ext3, ext4, NTFS
• Internal: 128GB High-speed storage
• Remote: File transfer supported (FTP)
• Maintenance/Management: Via CALICO studio

  Media and Images
• Interfaces: USB 3.0, Internal Storage, Network
• Video Codecs: H.264 (CBP, Main, High), H.265/HEVC (Main)
• Video Formats: mp4, mov, mkv, m4v, ts, mts, m2ts, mt2, mpeg2
• Playback Bit Rates (streaming and media playback): H264 total data handling 100Mbs, single channel up to 50Mbps @4K30 (2nd render 1080p (1920x1080) 30Hz) H265 total data handling 50Mbps, single channel up to 25Mbps @4K30 (2nd render 1080p (1920x1080) 30Hz)
• Still Image: JPEG, PNG, BMP

  File Playback Resolutions Supported
• Up to 2160p (3480x2160 ) 30Hz: Up to 1 (2nd render HD)
• Up to 1080p (1920x1080) 60Hz: Up to 2
• Up to 7680 x 4320 (8K) stored quality: Still Images/Playback at up to 2160p (4096x2160) 30Hz

  Audio
• Supported Sampling Rate: 44.1/48kHz
• Sample Size: 24-bits
• Supported Channels: One stereo pair per input

  Supported Input Resolutions
• 480i (720x480) 59.94Hz
• 480p (640x480) 60, 72, 75, 85Hz
• 480p (720x480) 59.94Hz
• 487i (720x487) 59.94Hz
• 576i (720x576) 50Hz
• 576p (720x576) 50Hz
• 600p (800x600) 56, 60, 72, 75, 85Hz
• 720p (1280x720) 29.97, 30, 50, 59.94, 60Hz
• 720p (1920x720) 60Hz
• 768p (1024x768) 60, 70, 75, 85Hz
• 768p (1280x768) 60, 75, 85Hz
• 768p (1360x768) 60Hz
• 800p (1280x800) 60, 75, 85Hz
• 864p (1152x864) 70, 75Hz
• 900p (1400x900) 60Hz
• 900p (1440x900) 60, 75, 85Hz
• 900p (1600x900) 60Hz
• 960p (1280x960) 60, 85Hz
• 980p (980x980) 75Hz
• 1024p (1280x1024) 50, 60, 75, 85Hz
• 1050p (1400x1050) 50, 60, 75Hz
• 1050p (1680x1050) 60Hz
• 1080i (1920x1080) 47.96, 48, 50, 59.94, 60Hz
• 1080p (1920x1080) 23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz
• 2160p (3840x2160) 23.98, 24, 25, 29.97, 30Hz
• 2160p (4096x2160) 23.98, 24, 25, 29.97, 30Hz

  Control Interface
• CALICO studio

  Other
• Operating Temperature: 32°F - 104°F (0°C - 40°C)
• Operating Humidity: 10% - 85%, Non-condensing
• Storage Temperature: 14°F - 158°F (-10°C - 70°C)
• Storage Humidity: 10% - 85%, Non-condensing
• Power: Powered by the CALICO main unit

Item Includes:

• 1x tvONE C7-PRO-MEDIA H.264 & H.265 Low-Latency 4K UHD USB 3.0 Streaming Media Input Module for CALICO PRO

Warranty:

• 5 Year Limited Warranty - Parts and Labor
