Proton PCI-4K-FLEX Flexible 4K - 12G SDI Broadcast Camera w/ S-Mount Lens - Stereo Microphone - Integrated Tally Light PROTON-PCI-4K-FLEX

Designed for the most demanding productions, the Proton Camera PCI-4K-FLEX delivers outstanding 4K image quality in an ultra-compact, versatile form.

With flexible mounting options and seamless integration into professional workflows, it’s the perfect solution for capturing dynamic POV shots with precision and ease. Experience 4K without limits - wherever your creativity takes you.

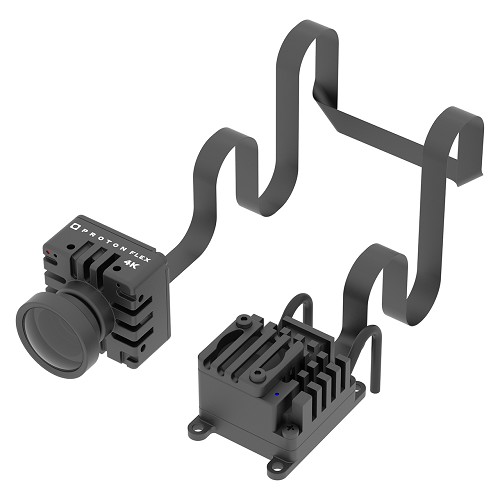

This camera is a Proton 4K but with a "split" body. It is separated by a ribbon, up to 30cm (11.8 inches). This keeps the sensor head cool while the video processing unit remains warm.

Thecamera also has two connection cables.....
1) Power / Control Cable with a Hirose HR10A-7P-6P(73) connector.
2) BNC Coax Cable - 12G SDI : Belden 179DT with BNC Plug.

Please refer to manual for details on operation.

Features:

• Up to 120° ultra wide angle
• High 12-bit dynamic 4K
• HDR compliant
• High sensitivity - Low noise, less light required
• Lowest operational voltage (12V - 25V)
• Lowest Power - 6W (Head: 1W + ECU: 5W)
• Stereo Microphone
• Tally light integrated

Specifications:

• Dimensions (LxWxH): 1.10" x 1.10" x 1.36" (28mm x 28mm x 34.5mm)
• Operation Voltage: 10.5V - 25V (Camera has reverse polarity protection)
• Power: 6W (4KP60, cold camera)
• Operational Temperature: -22°F - 140°F (-30°C - 60°C)
• Lens Mount: M12/S-mount. Inbuild high quality IR cut filter. Supporting lenses with no IR filter with perfect color reproduction.
• Sensor:
  - 1/1.8" 3840x2160 2µm pixel
  - 7.68mm x 4.32mm - 8.8mm diagonal
  - 12-bit dynamic (72dB)
• FOV:
  - 124° (H)/85° (V) with a 2.2mm lens
  - 97° (H)/64° (V) with a 3.2mm lens (factory lens is 3.2mm)
• ISO Base Sensitivity:
  - 75 - 2400
  - 200 - 6400 (low light mode)
• Shutter: 6µs - 1/FPS
• Video Modes:
  - UHD + FHD SDI 12G, 6G, 3G, 1.5G
  - P23, P24, P25, P29, P30, P48, P47, P50, P59, P60
  - FHD also supports 150, 159, 160

Item Includes:

• Proton FLEX 4K Mini Broadcast Camera
• 3.2mm f/2.3 Lens (S Mount)
• Ribbon Connector (11.8")
• Limited 6-Month Manufacturer Warranty

Warranty:

• 6 Month Limited Warranty
