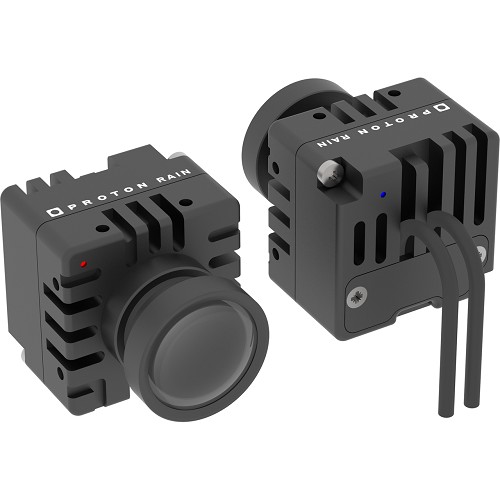

Proton PCI-RAIN Weatherproof IP67 Broadcast Camera with Integrated Tally Light - HDR Compliant PROTON-PCI-RAIN

The Proton Camera PCI-RAIN is the smallest rugged broadcast camera in the market with full image control, amazing 12-bit dynamic and ultra wide-angle shots. This will give you spectacular new perspectives without compromising on quality. The only limit is your imagination.

Features:

• Smallest IP67 Broadcast camera on the market
• Up to 120° ultra wide angle
• High 12-bit dynamic 1080p, 2-stops more on mini cameras
• HDR compliant - HLG, PQ and S-log3
• High sensitivity
• Lowest operational voltage (4.5V - 25V)
• Lowest Power (2.5W)
• Tally light integrated

Specifications:

• Dimensions (LxWxH): 1.18" x 1.18" x 1.02" (30mm x 30mm x 26mm)
• Protection: IP67 (outdoor)
• Weight: 0.086lbs (39g)
• Operation Voltage: 4.5V - 25V (Camera has reverse polarity protection)
• Power: 3.0W (1080p60, cold camera)
• Operational Temperature: -22°F - 167°F (-30°C - 75°C)
• Lens Mount: M12/S-mount. Inbuild high quality IR cut filter. Supporting lenses with no IR filter with perfect color reproduction.
• Sensor:
  - 4µm pixel - 1/1.8" - 8.8mm diagonal
  - 12-bit dynamic (72dB)
• FOV:
  - 124° (H)/85° (V) with a 2.2mm lens
  - 97° (H)/64° (V) with a 3.2mm lens
• ISO:
  - 75 - 2400 (gain mode 0)
  - 200 - 6400 (gain mode 1)
• Shutter: 6µs, 1/FPS
• Video Modes: 1920x1080 SDI 1.5G/3G P23, P24, P25, P29, P30, P50, P59, P60, 150, 159, 160

Item Includes:

• Proton RAIN Full HD Mini Broadcast Camera
• 3.2mm f/2.3 Lens (M12/S Mount)
• Limited 6-Month Manufacturer Warranty

Warranty:

• 6 Month Limited Warranty
